NAVIGATION SYSTEM(except Sedan) Display Signal Circuit between Radio Receiver and Extension Module

DTC Code DTC Name
Display Signal Circuit between Radio Receiver and Extension Module

DESCRIPTION

This circuit sends a display signal from the navigation ECU to the radio and display receiver assembly.

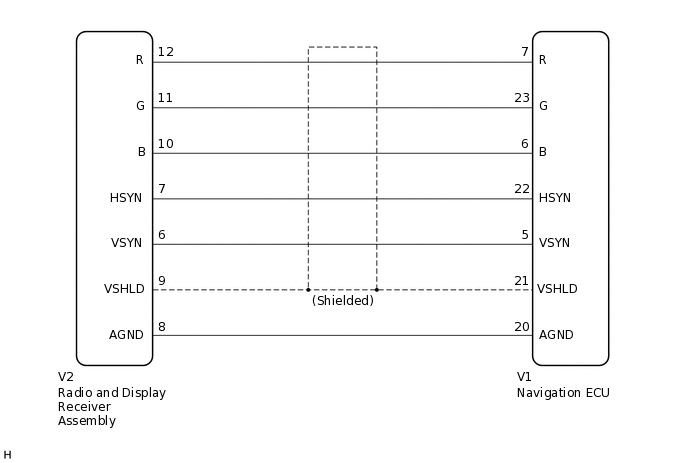

WIRING DIAGRAM

E226630E07

PROCEDURE

  1. CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - NAVIGATION ECU)

    1. Disconnect the V2 radio and display receiver assembly connector.

    2. Disconnect the V1 navigation ECU connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      V2-12 (R) - V1-7 (R)

      Always

      Below 1 Ω

      V2-11 (G) - V1-23 (G)

      Always

      Below 1 Ω

      V2-10 (B) - V1-6 (B)

      Always

      Below 1 Ω

      V2-7 (HSYN) - V1-22 (HSYN)

      Always

      Below 1 Ω

      V2-6 (VSYN) - V1-5 (VSYN)

      Always

      Below 1 Ω

      V2-9 (VSHLD) - V1-21 (VSHLD)

      Always

      Below 1 Ω

      V2-8 (AGND) - V1-20 (AGND)

      Always

      Below 1 Ω

      V2-12 (R) - Body ground

      Always

      10 kΩ or higher

      V2-11 (G) - Body ground

      Always

      10 kΩ or higher

      V2-10 (B) - Body ground

      Always

      10 kΩ or higher

      V2-7 (HSYN) - Body ground

      Always

      10 kΩ or higher

      V2-6 (VSYN) - Body ground

      Always

      10 kΩ or higher

      V2-9 (VSHLD) - Body ground

      Always

      10 kΩ or higher

      V2-8 (AGND) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

    Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
