BACK DOOR OUTSIDE GARNISH(for Upper Side) REMOVAL

PROCEDURE

  1. REMOVE BACK DOOR CENTER GARNISH

    Click here

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Click here

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Tip:

    Use the same procedure described for the LH side.

  4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Click here

  5. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

    Click here

  6. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)

    Tip:

    Use the same procedure described for the LH side.

  7. REMOVE REAR LIGHT ASSEMBLY LH

    Click here

  8. REMOVE REAR LIGHT ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  9. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    B426440

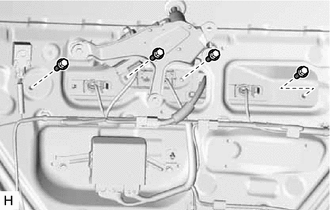

    1. Remove the 4 bolts.

    2. B426441C01
      V100155

      Protective Tape

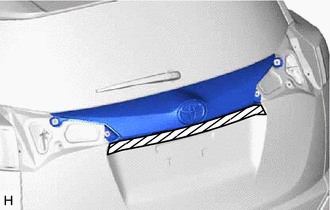

      Put protective tape around the back door outside garnish sub-assembly.

    3. B426442

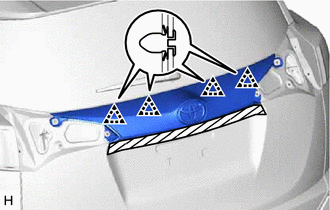

      Detach the 4 clips and remove the back door outside garnish sub-assembly.
