ENGINE UNIT


  1. CONSTRUCTION


    1. The connecting rods are made of high-strength steel for weight reduction.

    2. Plastic region tightening bolts are used.

    3. The crankshaft bearings have been optimized in width to reduce friction.

    4. The lining surface of the connecting rod bearing has been micro-grooved to provide an optimal amount of oil clearance. As a result, cold-engine cranking performance has been improved and engine vibrations have been reduced.

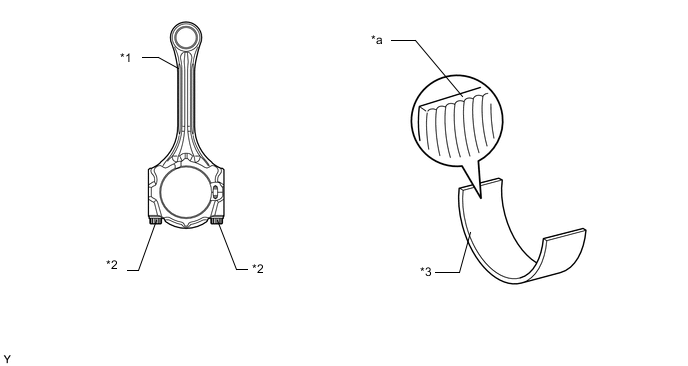

      A01GH12C01
      *1 Connecting Rod *2 Plastic Region Tightening Bolt
      *3 Connecting Rod Bearing - -
      *a Micro-grooved - -
