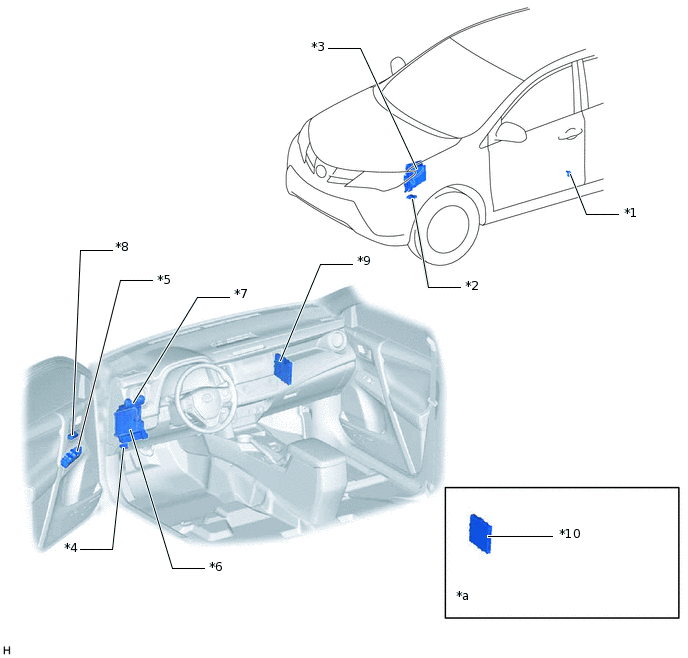

FRONT POWER SEAT CONTROL SYSTEM(w/ Memory) PARTS LOCATION

*1	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH	*2	PARK/NEUTRAL POSITION SWITCH ASSEMBLY
*3	ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-B NO. 1 FUSE	*4	DLC3
*5	POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY	*6	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*7	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - P/SEAT F/L FUSE	*8	SEAT MEMORY SWITCH
*9	HYBRID VEHICLE CONTROL ECU	*10	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*a	Refer to the Service Bulletin for the installation position of the parts.	-	-

*1

FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH

*2

PARK/NEUTRAL POSITION SWITCH ASSEMBLY

*3

ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY

*4

DLC3

*5

POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

*6

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*7

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

*8

SEAT MEMORY SWITCH

*9

HYBRID VEHICLE CONTROL ECU

*10

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

*a

Refer to the Service Bulletin for the installation position of the parts.

-

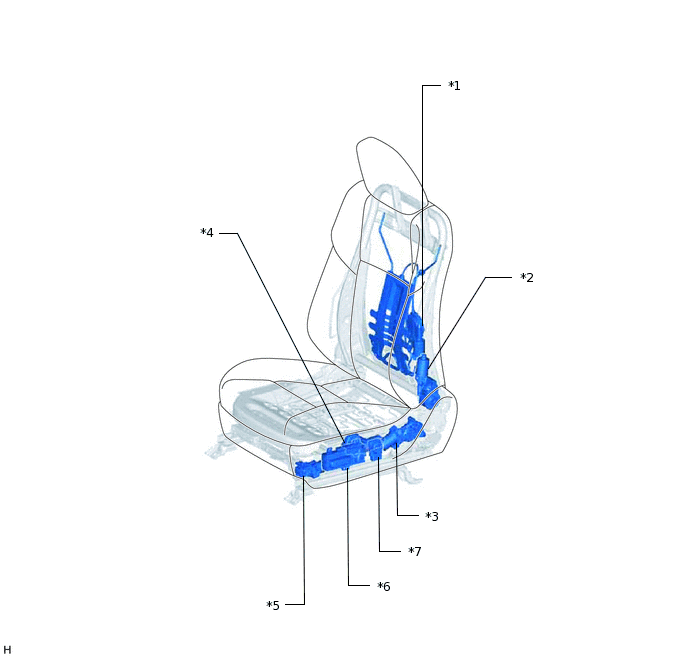

*1	LUMBAR SUPPORT ADJUSTER ASSEMBLY	*2	RECLINING MOTOR
*3	LIFTER MOTOR	*4	FRONT VERTICAL MOTOR
*5	SLIDE MOTOR	*6	POSITION CONTROL ECU AND SWITCH ASSEMBLY
*7	POWER SEAT SWITCH ASSEMBLY	-	-
