PANORAMIC VIEW MONITOR SWITCH INSPECTION

PROCEDURE

1. INSPECT TELLTALE LIGHT ASSEMBLY (PANORAMIC VIEW MONITOR SWITCH)

   1.

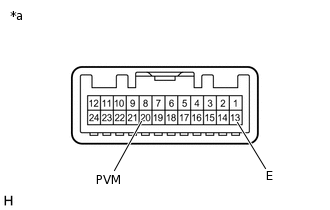

      *a	Component without harness connected (Telltale Light Assembly (Panoramic View Monitor Switch))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection	Switch Condition	Specified Condition
      20 (PVM) - 13 (E)	Panoramic View Monitor Switch off	10 kΩ or higher
      	Panoramic View Monitor Switch on	Below 1 Ω

      If the result is not as specified, replace the telltale light assembly (Panoramic View Monitor Switch).

   2.

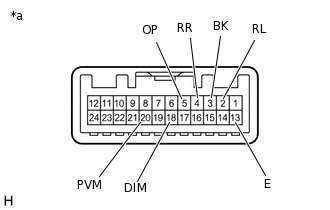

      *a	Component without harness connected (Telltale Light Assembly (Panoramic View Monitor Switch))

      Check that the illuminates.

      1. Apply battery voltage to the telltale light assembly (Panoramic View Monitor Switch) and check that the switch illuminates.

         OK

         Connection	Specified Condition
         Battery positive (+) → Terminal 20 (PVM) Battery negative (-) → Terminal 2 (RL)	Illuminates
         Battery positive (+) → Terminal 20 (PVM) Battery negative (-) → Terminal 3 (BK)	Illuminates
         Battery positive (+) → Terminal 20 (PVM) Battery negative (-) → Terminal 4 (RR)	Illuminates
         Battery positive (+) → Terminal 20 (PVM) Battery negative (-) → Terminal 5 (OP)	Illuminates
         Battery positive (+) → Terminal 20 (PVM) Battery positive (+) → Terminal 18 (DIM) Battery negative (-) → Terminal 2 (RL) Battery negative (-) → Terminal 13 (E)	Illuminates in dimmed state
         Battery positive (+) → Terminal 20 (PVM) Battery positive (+) → Terminal 18 (DIM) Battery negative (-) → Terminal 3 (BK) Battery negative (-) → Terminal 13 (E)	Illuminates in dimmed state
         Battery positive (+) → Terminal 20 (PVM) Battery positive (+) → Terminal 18 (DIM) Battery negative (-) → Terminal 4 (RR) Battery negative (-) → Terminal 13 (E)	Illuminates in dimmed state
         Battery positive (+) → Terminal 20 (PVM) Battery positive (+) → Terminal 18 (DIM) Battery negative (-) → Terminal 5 (OP) Battery negative (-) → Terminal 13 (E)	Illuminates in dimmed state

         If the result is not as specified, replace the telltale light assembly (Panoramic View Monitor Switch).
