HIGH MOUNTED STOP LIGHT ASSEMBLY REMOVAL

PROCEDURE

  1. REMOVE CENTER STOP LIGHT ASSEMBLY

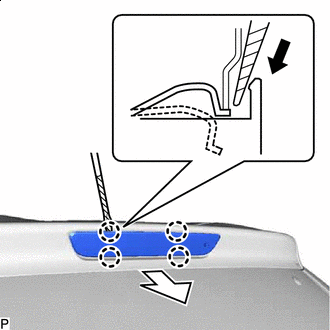

    1. E294611C01
      V100155

      Protective Tape

      Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to disconnect the center stop light assembly as shown in the illustration.

      Note:

      Be careful not to damage the back door panel sub-assembly.

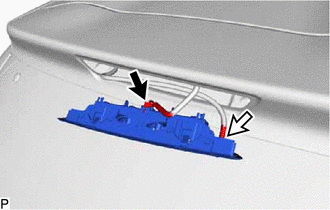

    2. E294633

      Disconnect the connector.

    3. Disconnect the washer hose to remove the center stop light assembly.

  2. REMOVE CENTER STOP LIGHT BULB

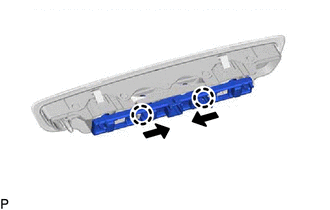

    1. E294634

      Disengage the 2 claws to remove the bulb holder with the 4 center stop light bulbs as shown in the illustration.

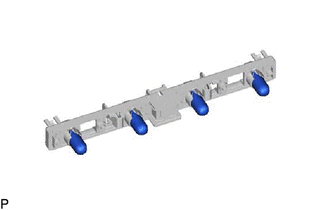

    2. E294636

      Remove the 4 center stop light bulbs from the bulb holder.
