METER / GAUGE SYSTEM DETAILS


  1. FUNCTION


    1. Buzzer Function


      1. The table below shows the warning and reminder functions of the buzzer in the combination meter assembly:

        Item

        • Key Reminder

        • Light Reminder

        • Fuel Sedimenter Warning*1

        • Seat Belt Warning*2

        • Speed Warning*3

        • *1: Models with diesel engine

        • *2: Models with seat belt warning buzzer function

        • *3: Models with speed warning buzzer function

    2. Front Seat Belt Warning System


      1. When the ignition switch is ON, this system detects the condition of the seat belts based on the signals from the driver and front passenger* seat belt buckle switches and the occupant detection sensor.

      2. If the driver and front passenger* seat belt buckle switches are off at this time, the front seat belt warning light will blink.

      3. Occupant Detection Sensor*


        • The occupant detection sensor, which is enclosed in the seat cushion of the front passenger seat, is used to detect whether or not the front passenger seat is occupied.

        • This sensor consists of a construction in which 2 electrode sheets sandwich a spacer. When the occupant is seated, the electrode sheets come in contact with each other through the hole provided in the spacer portion, thus enabling the current to flow.

        • The sensor detects whether or not an occupant is seated in the front passenger seat.


        • *: Models with front passenger side seat belt warning system

  2. CONSTRUCTION


    1. Accessory Meter Assembly


      1. An accessory meter assembly is used, which can show the cruise information display.

      2. A sensor that detects the earth's magnetic field is built inside the inside accessory meter assembly. The compass indicates north as 0° and the forward direction of the vehicle using 8 azimuths.

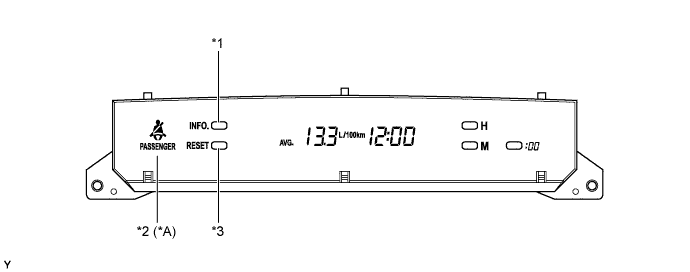

        A01EZPSE01
        Text in Illustration
        *A Models with Front Passenger Side Seat Belt Warning System - -
        *1 INFO. Switch *2 Front Passenger Seat Belt Warning Light
        *3 RESET Switch - -

      3. The accessory meter assembly has the following functions:

        Function Outline
        Clock and Outside Temperature Display

        • Displays the clock.

        • Displays the outside temperature.
        Cruise Information Display

        In the cruise information display, 6 types of information can be displayed.


        • Average Fuel Consumption

        • Current Fuel Consumption

        • Average Vehicle Speed

        • Elapsed Time

        • Driveable Distance

        • Compass*1
        Front Passenger Side Seat Belt Warning*2 Displays the front passenger seat belt warning light.

        • *1: Except models for South Africa

        • *2: Models with front passenger side seat belt warning system

      4. The display of the accessory meter assembly undergoes the following transitions:

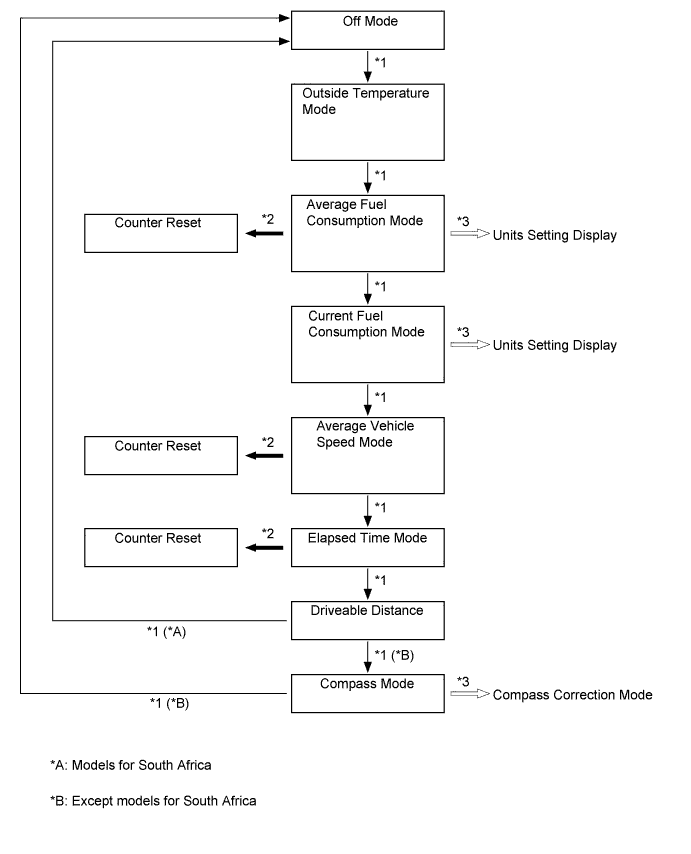

        A01EZFDE01
        No. Condition
        *1 Pressing the INFO. switch for less than 2.3 seconds
        *2 Pressing the RESET switch for less than 0.8 seconds
        *3 Pressing the INFO. switch for 0.8 seconds or more

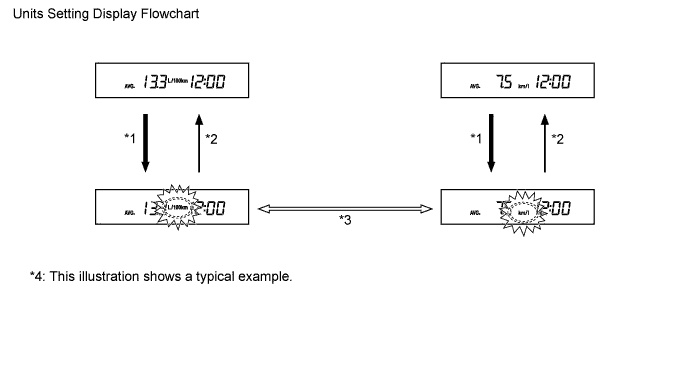

        A01EZCGE01
        No. Condition
        *1 Pressing the INFO. switch for 2.3 seconds or more
        *2 Pressing the INFO. switch for less than 2.3 seconds or 6 seconds of no operation
        *3 Pressing the RESET switch for less than 0.8 seconds

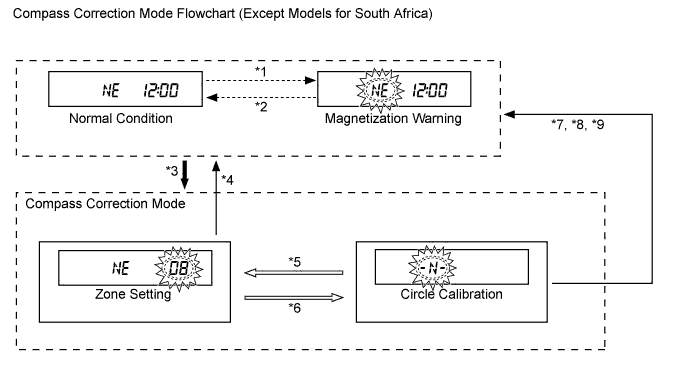

        A01EZKWE01
        No. Condition
        *1 When a predetermined level of magnetization has not been met for longer than a certain period of time.
        *2 When magnetization correction is conducted via automatic correction or circling calibration.
        *3 Pressing the INFO. switch for 2.3 seconds or more
        *4 Pressing the INFO. switch for less than 2.3 seconds or 6 seconds of no operation
        *5 Pressing the RESET switch for less than 0.8 seconds
        *6 When the RESET switch has been pressed for less than 0.8 seconds before circling calibration has been completed.
        *7 When circling calibration has been conduced correctly.
        *8 When circling calibration has not been conducted correctly.
        *9 Pressing the INFO. switch for less than 2.3 seconds

        Tech Tips

        For details of the compass correction mode, refer to the corresponding Repair Manual for this model.
