FUEL SYSTEM


  1. CONSTRUCTION


    1. A thin sheet iron fuel tank assembly is used to achieve weight reduction and superior fuel permeation prevention performance.

    2. A fuel drain mark has been provided at the lowest position of the fuel tank assembly. When dismantling (scrapping) the vehicle, drain fuel by drilling a hole at the drain mark.

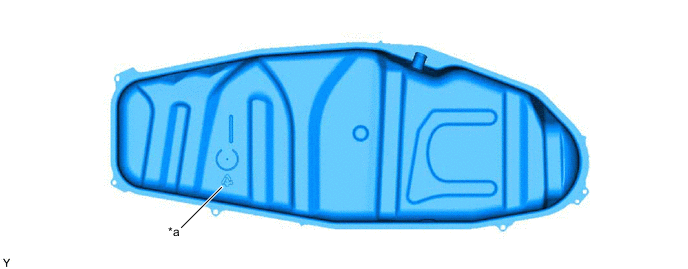

      Figure 1. Fuel Tank Assembly (View from Bottom Side)

      A01GH31C01
      *a Fuel Drain Mark - -
