OUTER REAR VIEW MIRROR COVER REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE

  1. REMOVE OUTER MIRROR

    Click here

  2. REMOVE OUTER MIRROR COVER

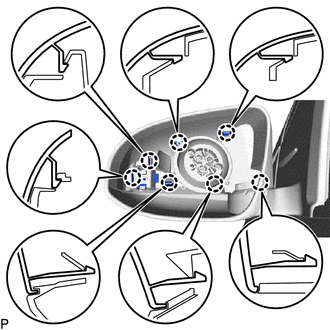

    1. B370089

      Disengage the 7 claws and remove the outer mirror cover.
