METER / GAUGE SYSTEM PARTS LOCATION

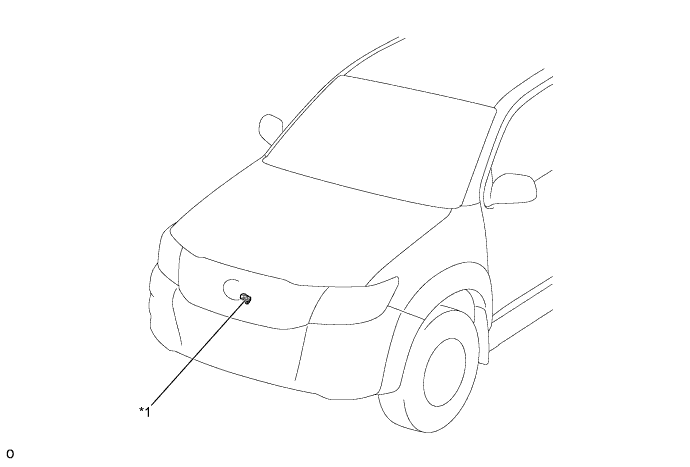

Text in Illustration (Models with Accessory Meter Assembly:)

*1

Cooler Thermistor (Ambient Temperature Sensor)

-

-

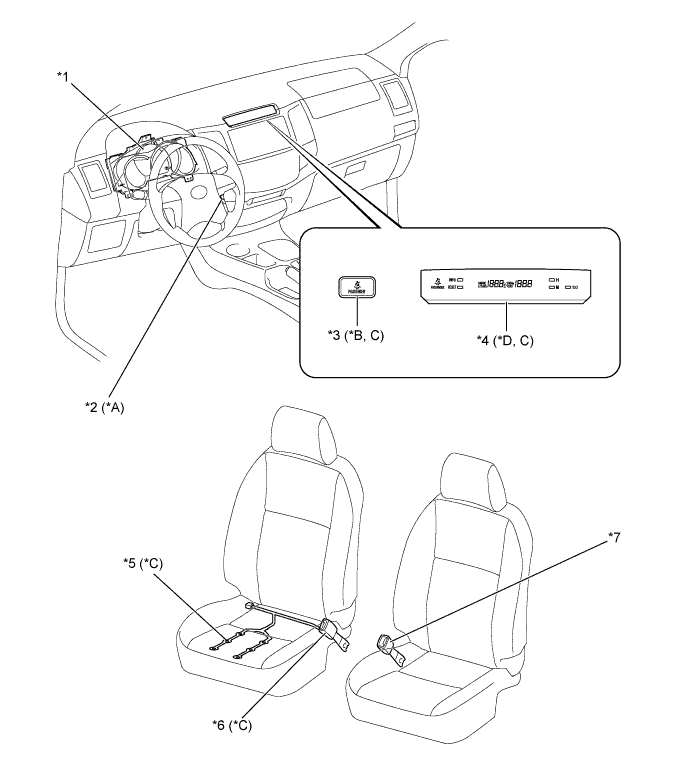

Text in Illustration (Models with Front Seat Belt Warning System and Accessory Meter Assembly:)

*A	Models with Steering Pad Switch	*B	Models without Accessory Meter Assembly
*C	Models with Front Passenger Side Seat Belt Warning System	*D	Models with Accessory Meter Assembly
*1	Combination Meter Assembly	*2	Steering Pad Switch
*3	Front Passenger Seat Belt Warning Light	*4	Accessory Meter Assembly
*5	Occupant Detection Sensor	*6	Front Seat Inner Belt Assembly RH
*7	Front Seat Inner Belt Assembly LH	-	-
