BRAKE CONTROL SYSTEM

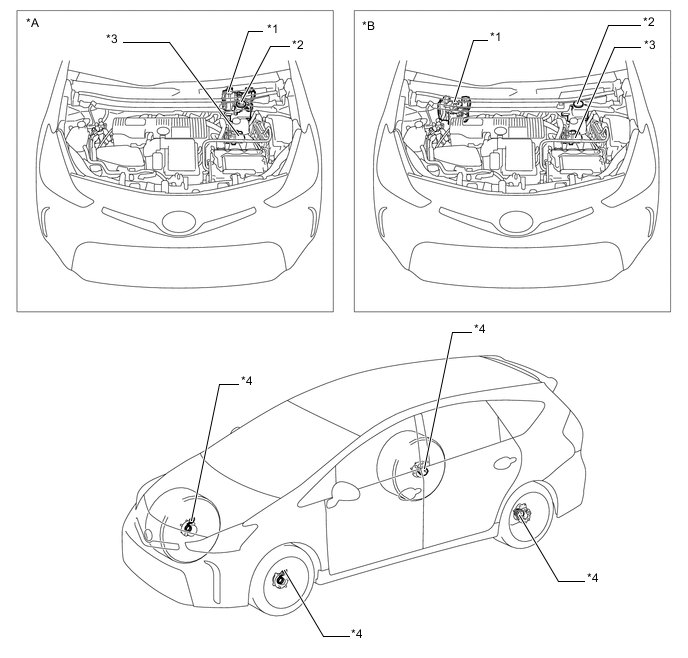

| *A | LHD Models | *B | RHD Models |
| *1 | Brake Booster with Master Cylinder Assembly - Hydraulic Brake Booster - Brake Actuator - Brake Stroke Simulator Cylinder Assembly - Skid Control ECU |
*2 | Brake Master Cylinder Reservoir Assembly - Brake Fluid Level Warning Switch |
| *3 | Brake Booster Pump Assembly | *4 | Speed Sensor |

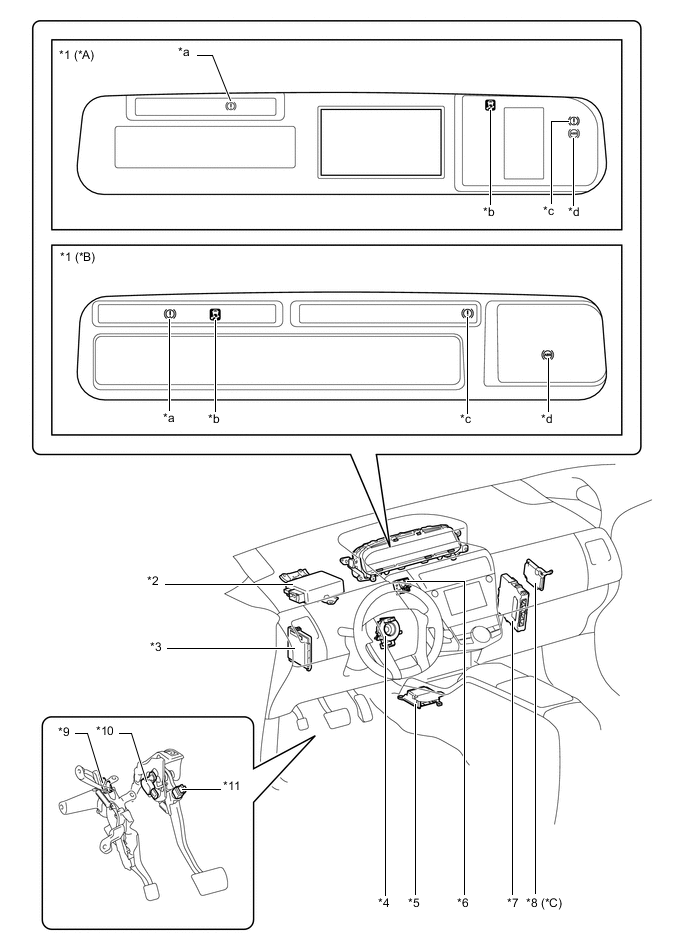

| *A | Models with Multi-information Display | *B | Models without Multi-information Display |
| *C | Models with Dynamic Radar Cruise Control System and Pre-crash Safety System | - | - |
| *1 | Combination Meter Sub-assembly - Buzzer |
*2 | Power Steering ECU Assembly |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Spiral Cable with Sensor Sub-assembly - Steering Angle Sensor |
| *5 | Airbag ECU Assembly -Yawrate Sensor -Acceleration Sensor |
*6 | Hazard Warning Signal Switch Assembly |
| *7 | Hybrid Vehicle Control ECU | *8 | Driving Support ECU Assembly |
| *9 | Parking Brake Switch Assembly | *10 | Brake Pedal Stroke Sensor Assembly |
| *11 | Stop Light Switch Assembly | - | - |
| *a | Brake Warning Light/Red (Malfunction) | *b | Slip Indicator Light |
| *c | Brake Warning Light/Yellow (Minor Malfunction) | *d | ABS Warning Light |

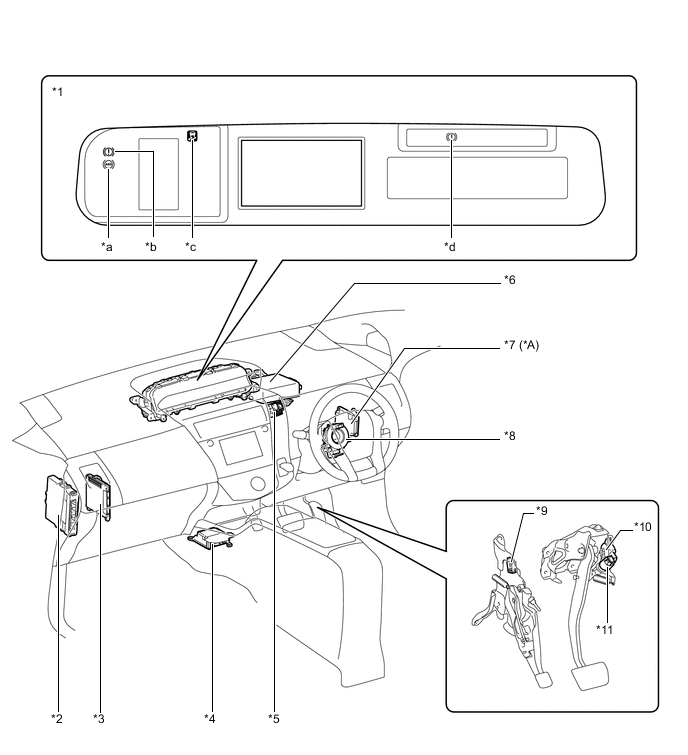

| *A | Models with Dynamic Radar Cruise Control System and Pre-crash Safety System | - | - |
| *1 | Combination Meter Sub-assembly - Buzzer |
*2 | Hybrid Vehicle Control ECU |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Airbag ECU Assembly -Yawrate Sensor -Acceleration Sensor |
| *5 | Hazard Warning Signal Switch Assembly | *6 | Power Steering ECU Assembly |
| *7 | Driving Support ECU Assembly | *8 | Spiral Cable with Sensor Sub-assembly - Steering Angle Sensor |
| *9 | Parking Brake Switch Assembly | *10 | Brake Pedal Stroke Sensor Assembly |
| *11 | Stop Light Switch Assembly | - | - |
| *a | ABS Warning Light | *b | Brake Warning Light/Yellow (Minor Malfunction) |
| *c | Slip Indicator Light | *d | Brake Warning Light/Red (Malfunction) |
