CURTAIN SHIELD AIRBAG ASSEMBLY ON-VEHICLE INSPECTION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. CHECK CURTAIN SHIELD AIRBAG ASSEMBLY LH (VEHICLE NOT INVOLVED IN COLLISION)

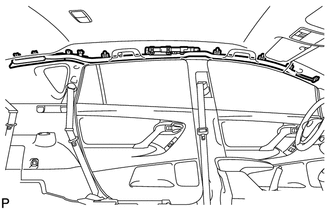

    1. B223160

      Perform a diagnostic system check (Click here).

    2. With the curtain shield airbag installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the curtain shield airbag with a new one:

      Cuts, minute cracks or marked discoloration on the curtain shield airbag.

  2. CHECK CURTAIN SHIELD AIRBAG ASSEMBLY LH (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)

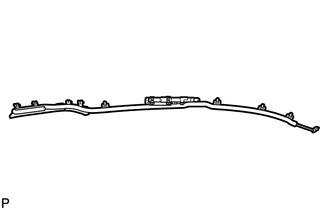

    1. B223161

      Perform a diagnostic system check (Click here).

    2. With the curtain shield airbag removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the curtain shield airbag with a new one:

      • Cuts, minute cracks or marked discoloration on the curtain shield airbag.

      • Cracks or other damage to the connector.

      CAUTION:

      For removal and installation of the curtain shield airbag, be sure to follow the correct procedure.
