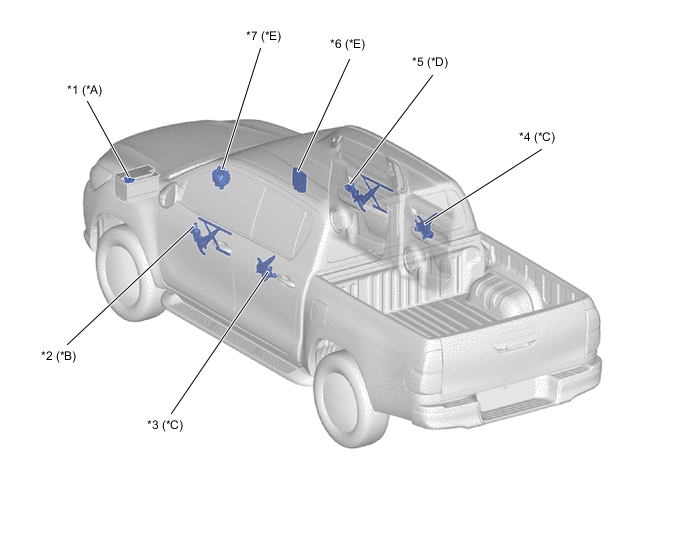

LIN COMMUNICATION SYSTEM
| *A | Models with Stop and Start System | *B | Models with Power Window System |
| *C | Models with Rear Power Window System, and Power Window System with All Door One-touch Auto Up-and-down Function | *D | For Passenger Side Only and For Models With Power Window System with All Door One-touch Auto Up-and-down Function |
| *E | Except Models with KD Engine Series | - | - |
| *1 | Battery Sensor (Battery State Sensor Assembly) | *2 | Power Window Regulator MotorAssembly LH |
| *3 | Power Window Regulator Motor Assembly LH (Rear) | *4 | Power Window Regulator Motor Assembly RH (Rear) |
| *5 | Power Window Regulator Motor Assembly RH | *6 | ECM |
| *7 | Generator Assembly | - | - |
| *A | Models with Double Locking Function | *B | Models with Entry and Start System |
| *C | Models with Power Window System with All Door One-touch Auto Up-and-down Function | *D | Models with Automatic Air Conditioning System and Automatic Rear Cooler System |
| *E | Models with ID Code Box | - | - |
| *1 | Double Lock Control Relay Assembly | *2 | Steering Lock Actuator Assembly |
| *3 | Body ECU | *4 | Power Window Regulator Master Switch Assembly |
| *5 | Air Conditioning Amplifier Assembly | *6 | Air Conditioning Control Assembly |
| *7 | Certification ECU (Smart Key ECU Assembly) | *8 | ID Code Box (Immobiliser Code ECU) |
| *a | Refer to the Service Bulletin for the installation of the part. | - | - |
