BLOWER UNIT INSTALLATION

CAUTION / NOTICE / HINT

Tip:

A bolt without a torque specification is shown in the standard bolt chart.

Click here

PROCEDURE

  1. INSTALL CLEAN AIR FILTER

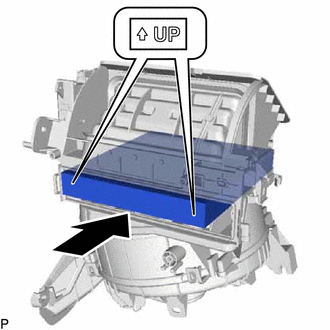

    1. E265986

      Install the air refiner element as shown in the illustration.

      Note:

      Install the air refiner element with its UP mark oriented in the correct direction.

  2. INSTALL AIR FILTER CASE

    1. Attach the guide and claw to install the air filter case.

  3. INSTALL BLOWER ASSEMBLY

    1. Install the blower assembly to the air conditioning radiator assembly with the 3 screws.

    2. Connect the connector.

    3. Connect the connector bracket with the screw and attach the wire harness.

  4. INSTALL AIR CONDITIONER UNIT ASSEMBLY
