LANE DEPARTURE ALERT SYSTEM


  1. OPERATION


    1. The combination meter assembly illuminates the indicator lights or displays an indicator on the multi-information display and sounds a multi buzzer (which is built into the combination meter assembly) in accordance with the respective condition.

      Lane Departure Alert System On and Dynamic Radar Cruise Control System Off
      Condition Multi-information Display LDA Indicator Light Multi Buzzer

      • Approximately 50 km/h (32 mph) or more

      • Lane Markers Not Detected

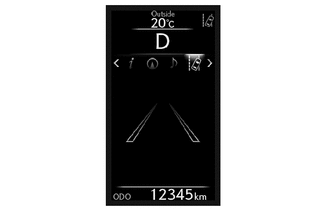

      		 B002F72 Illuminates -

      • Below Approximately 50 km/h (32 mph)

      • Approximately 50 km/h (32 mph) or more

      • One Lane Marker Detected

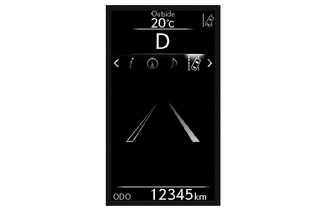

      		 B002FL2 Illuminates -

      • Approximately 50 km/h (32 mph) or more

      • Lane Marker Detected

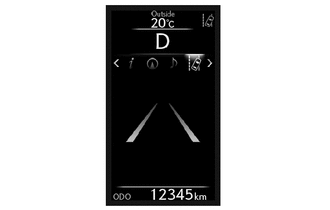

      		 B002FQ9 Illuminates -
      White lines are displayed independently on the left and right sides depending on the detection condition.

      • Approximately 50 km/h (32 mph) or more

      • Lane Departure Alert Operating

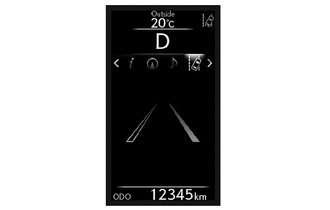

      		 B002FNG Illuminates Sounds
      Lane Departure Alert System On and Dynamic Radar Cruise Control System On
      Condition Multi-information Display LDA Indicator Light Multi Buzzer

      • Approximately 50 km/h (32 mph) or more

      • Lane Markers Not Detected

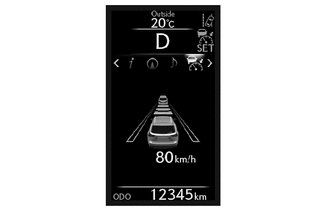

      		 B002FD9 Illuminates -

      • Approximately 50 km/h (32 mph) or more

      • One Lane Marker Detected

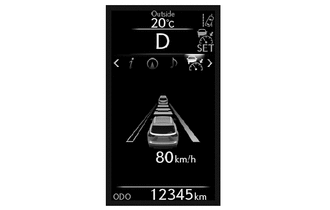

      		 B002FRR Illuminates -

      • Approximately 50 km/h (32 mph) or more

      • Lane Markers Detected

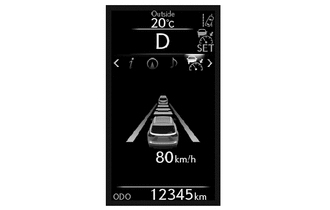

      		 B002FA7 Illuminates -
      White lines are displayed independently on the left and right sides depending on the detection condition.

      • Approximately 50 km/h (32 mph) or more

      • Lane Markers Detected

      • Lane Depature Alert Operating

      		 B002FD6 Illuminates Sounds
      Warning Messages
      Condition Multi-information Display Master Warning Light Multi Buzzer

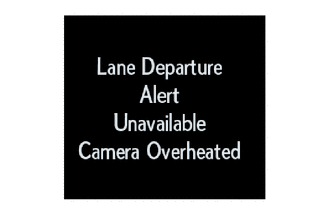

      Temperature of Lane Departure Warning Camera is Abnormal B002FQ3 Illuminates Sounds

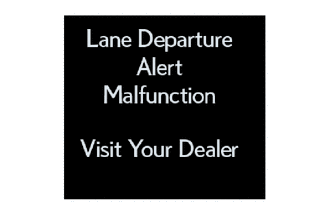

      System Malfunction B002FOW Illuminates Sounds

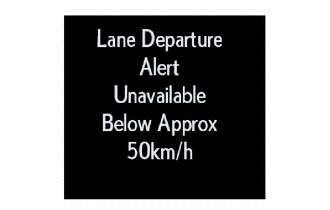

      Vehicle Speed is Approximately 50 km/h (32 mph) or Less B002FR9 - -
