DOOR MIRROR FOOT LIGHT REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure listed below is for LH side.

PROCEDURE


  1. REMOVE OUTER MIRROR (for TMC Made)

    Click here

  2. REMOVE OUTER MIRROR (for TMMT Made)

    Click here

  3. REMOVE OUTER MIRROR COVER (for TMC Made)

    Click here

  4. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY (for TMC Made)

    Click here

  5. REMOVE OUTER MIRROR LIGHT ASSEMBLY (for TMC Made)


    1. B008LL3

      Disengage the claws to remove the outer mirror lower cover.

    2. B008MEG

      Disengage the grommet.

    3. Disconnect the connector to remove the outer mirror light assembly.

  6. REMOVE OUTER MIRROR LIGHT ASSEMBLY (for TMMT Made)

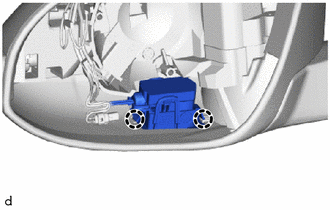

    1. B008LFX

      Disengage the claws to remove the outer mirror hole cover with the outer mirror light assembly.

    2. B008LEZ

      Disengage the claws to remove the outer mirror hole cover.

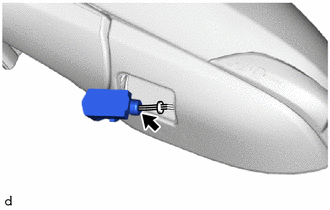

    3. B008MEO

      Disengage the grommet.

    4. Disconnect the connector to remove the outer mirror light assembly.
