AUDIO AND VISUAL SYSTEM(for Radio and Display Type), Diagnostic DTC:B15C0 and B15C1

DTC Code DTC Name
B15C0 Short in GPS Antenna
B15C1 Open in GPS Antenna

DESCRIPTION

These DTCs are stored when a malfunction occurs in the navigation antenna assembly.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B15C0

GPS Antenna Connection Malfunction(short)

Navigation antenna error

  • Navigation antenna assembly

  • Antenna cord sub-assembly

  • Radio and display receiver assembly

B15C1

GPS Antenna Connection Malfunction(break)

Error of the power source to the navigation antenna

  • Navigation antenna assembly

  • Antenna cord sub-assembly

  • Radio and display receiver assembly

WIRING DIAGRAM

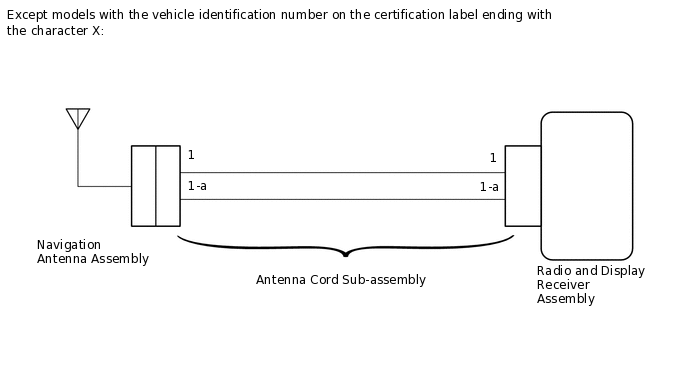

E336209E02

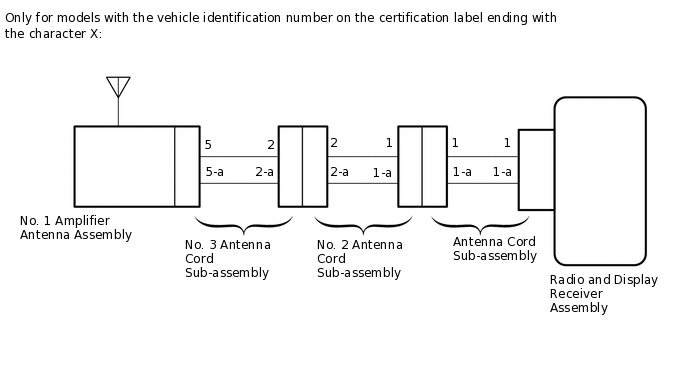

E336210E02

CAUTION / NOTICE / HINT

Note:

Check that the wire harness is properly installed and does not have any sharp bends, pinching or loose connections.

Click hereClick hereClick here

PROCEDURE

  1. CHECK VEHICLE CONDITION

    1. Check the vehicle condition.

    Result

    Result

    Proceed to

    Except models with the vehicle identification number on the certification label ending with the character X

    A

    Only for models with the vehicle identification number on the certification label ending with the character X

    B
    B

    CHECK CONNECTION OF ANTENNA CORD SUB-ASSEMBLYClick here

    A

  2. CHECK CONNECTION OF NAVIGATION ANTENNA ASSEMBLY

    1. Check if the navigation antenna assembly is securely connected to the antenna cord sub-assembly.

      OK

      Navigation antenna assembly is securely connected.

    Result

    Proceed to

    OK

    NG
    NG

    SECURELY CONNECT NAVIGATION ANTENNA ASSEMBLY

    OK

  3. CHECK ANTENNA CORD SUB-ASSEMBLY

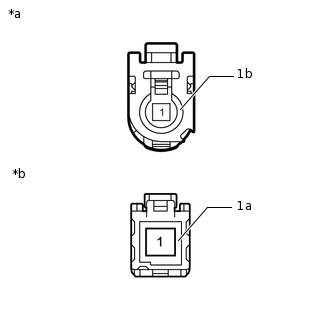

    1. E291229C01

      *a

      Front view of wire harness connector

      (to Radio and Display Receiver Assembly)

      *b

      Front view of wire harness connector

      (to Navigation Antenna Assembly)

      Disconnect the antenna connector from the radio and display receiver assembly.

    2. Disconnect the antenna connector from the navigation antenna assembly.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 - 1

      Always

      Below 1 Ω

      1-a - 1-a

      Always

      Below 1 Ω

      1 - Body ground

      Always

      10 kΩ or higher

      1-a - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE ANTENNA CORD SUB-ASSEMBLY

    Click here

    OK

  4. CHECK NAVIGATION ANTENNA ASSEMBLY

    1. Replace the navigation antenna assembly with a known good one.

      Click here

    2. Clear the DTCs.

      Click here

      Body Electrical > Navigation System > Clear DTCs

    3. Check for DTCs.

      Click here

      Body Electrical > Navigation System > Trouble Codes

      OK

      No DTCs are output.

    Result

    Proceed to

    OK

    NG
    OK

    END (NAVIGATION ANTENNA ASSEMBLY IS DEFECTIVE)

    NG

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

    Click here

  5. CHECK CONNECTION OF ANTENNA CORD SUB-ASSEMBLY

    1. Check if the antenna cord sub-assembly is securely connected to the radio and display receiver assembly.

      OK

      Antenna cord sub-assembly is securely connected.

    Result

    Proceed to

    OK

    NG
    NG

    SECURELY CONNECT NAVIGATION ANTENNA ASSEMBLY

    OK

  6. CHECK ANTENNA CORD SUB-ASSEMBLY

    1. E291139C01

      *a

      Front view of wire harness connector

      (to No. 2 Antenna Cord Sub-assembly)

      *b

      Front view of wire harness connector

      (to radio and display receiver assembly)

      Disconnect the antenna connector from the No. 2 antenna cord sub-assembly.

    2. Disconnect the antenna connector from the radio and display receiver assembly.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 - 1

      Always

      Below 1 Ω

      1-a - 1-a

      Always

      Below 1 Ω

      1 - Body ground

      Always

      10 kΩ or higher

      1-a - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE ANTENNA CORD SUB-ASSEMBLY

    Click here

    OK

  7. CHECK NO. 2 ANTENNA CORD SUB-ASSEMBLY

    1. E288795C01

      *a

      Front view of wire harness connector

      (to No. 3 Antenna Cord Sub-assembly)

      *b

      Front view of wire harness connector

      (to Antenna Cord Sub-assembly)

      Disconnect the antenna connector from the No. 3 antenna cord sub-assembly.

    2. Disconnect the antenna connector from the antenna cord sub-assembly.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      2 - 1

      Always

      Below 1 Ω

      2-a - 1-a

      Always

      Below 1 Ω

      2 - Body ground

      Always

      10 kΩ or higher

      2-a - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE NO. 2 ANTENNA CORD SUB-ASSEMBLY

    Click here

    OK

  8. CHECK NO. 3 ANTENNA CORD SUB-ASSEMBLY

    1. E332809C03

      *a

      Front view of wire harness connector

      (to No. 1 Amplifier Antenna Assembly)

      *b

      Front view of wire harness connector

      (to No. 2 Antenna Cord Sub-assembly)

      Disconnect the antenna connector from the No. 1 amplifier antenna assembly.

    2. Disconnect the antenna connector from the No. 2 antenna cord sub-assembly.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      5 - 2

      Always

      Below 1 Ω

      5-a - 2-a

      Always

      Below 1 Ω

      5 - Body ground

      Always

      10 kΩ or higher

      5-a - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE NO. 3 ANTENNA CORD SUB-ASSEMBLY

    Click here

    OK

  9. CHECK NO. 1 AMPLIFIER ANTENNA ASSEMBLY

    1. Replace the No. 1 amplifier antenna assembly with a known good one.

      Click here

    2. Clear the DTCs.

      Click here

      Body Electrical > Navigation System > Clear DTCs

    3. Check for DTCs.

      Click here

      Body Electrical > Navigation System > Trouble Codes

      OK

      No DTCs are output.

    Result

    Proceed to

    OK

    NG
    OK

    END (NO. 1 AMPLIFIER ANTENNA ASSEMBLY IS DEFECTIVE)

    NG

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

    Click here
