LIN COMMUNICATION SYSTEM
Figure 1. Door Bus
Figure 2. Charging Bus (Except Models with KD Engine Series or Stop and Start System)
| *1 | Generator Assembly |

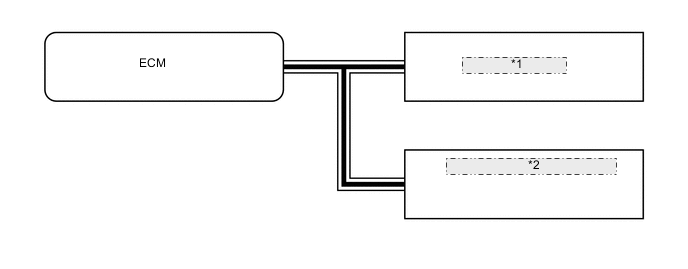

Figure 3. Charging Bus (Models with Stop and Start System)
| *1 | Generator Assembly |
| *2 | Battery Sensor (Battery State Sensor Assembly) |
Figure 4. Certification Bus (Models with Entry and Start System without ID Code Box)
| *1 | Certification ECU (Smart Key ECU Assembly) |
| *2 | Steering Lock Actuator Assembly |
Figure 5. Certification Bus (Models with Entry and Start System with ID Code box)
| *1 | Certification ECU (Smart Key ECU Assembly) |
| *2 | ID Code Box (Immobiliser Code ECU) |
| *3 | Steering Lock Actuator Assembly |
Figure 6. Air Conditioning Bus (Models with Automatic Air Conditioning System)
| *1 | Air Conditioning Amplifier Assembly |
| *2 | Air Conditioning Control Assembly |
