CRUISE CONTROL SYSTEM


  1. CONSTRUCTION

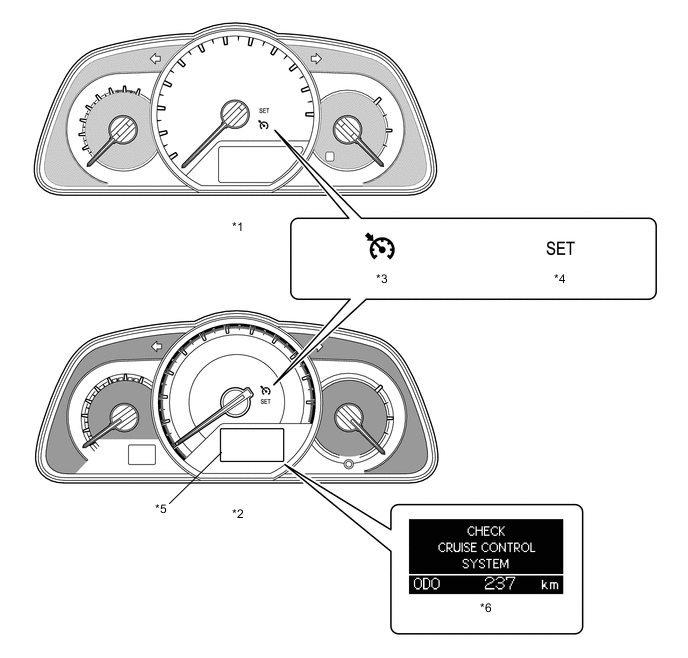

    A00YY3OC01
    *1 Combination Meter Assembly with Segment Display Type Multi-information Display *2 Combination Meter Assembly with Dot Display Type Multi-information Display
    *3 Cruise Main Indicator Light *4 Cruise SET Indicator Light
    *5 Multi-information Display *6 Warning Display

    1. The combination meter assembly illuminates the indicator lights in accordance with each respective condition.

      Condition Cruise Main Indicator Light Cruise SET Indicator Light
      ON/OFF Button On Illuminates (Green) -
      Set Control Illuminates (Green) Illuminates
      Malfunction Occurred Illuminates (Yellow)*1 -
      Turns Off*2, *3 -

      Tech Tips

      *1: Models with combination meter assembly with segment display type multi-information display

      *2: Models with combination meter assembly with dot display type multi-information display

      *3: When a malfunction has occurred, a warning message is displayed on the multi-information display.
