BLOWER UNIT REASSEMBLY

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • A bolt without a torque specification is shown in the standard bolt chart.

    Click here

PROCEDURE

  1. INSTALL NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY

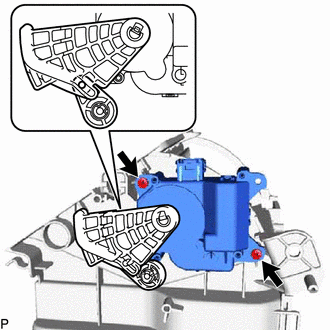

    1. E265985

      Install the link of the No. 1 blower damper servo sub-assembly to the link of the blower assembly as shown in the illustration.

    2. Install the No. 1 blower damper servo sub-assembly with the 2 screws.

  2. INSTALL BLOWER MOTOR WITH FAN SUB-ASSEMBLY

    1. E265981

      Install the blower motor with fan sub-assembly with the 3 screws.
