LIGHTING SYSTEM

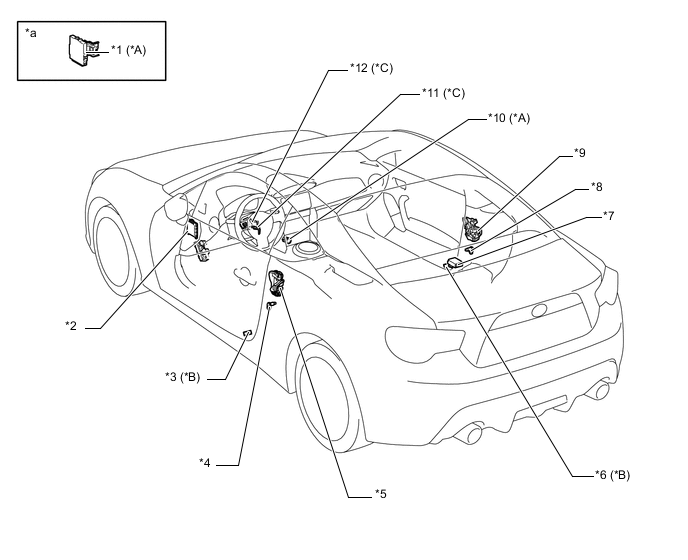

A004GL5E02
Text in Illustration (LHD Models:)
*A Models with Entry and Start System *B Models with Courtesy Light Assembly
*C Models without Entry and Start System - -
*1 Certification ECU (Smart Key ECU Assembly) *2 Main Body ECU (Network Gateway ECU)
*3 Courtesy Light Assembly LH *4 Front Door Courtesy Light Switch Assembly (LH)
*5 Front Door Lock Assembly LH *6 Courtesy Light Assembly RH
*7 Door Control Receiver *8 Front Door Courtesy Light Switch Assembly (RH)
*9 Front Door Lock Assembly RH *10

  • Engine Switch (Push Start Switch)


    • Engine Switch (Push Start Switch) Illumination Light
*11

  • Transponder Key Amplifier


    • Key Illumination Light

 *12

  • Steering Column Upper with Switch Bracket Assembly


    • Ignition Switch (Ignition or Starter Switch Assembly)
*a Refer to the Service Bulletin for the installation position of the part. - -

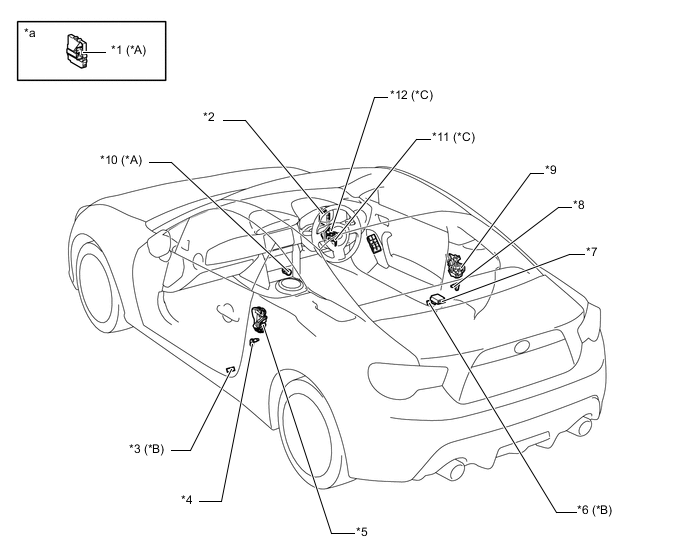

A004GPYE02
Text in Illustration (RHD Models:)
*A Models with Entry and Start System *B Models with Courtesy Light Assembly
*C Models without Entry and Start System - -
*1 Certification ECU (Smart Key ECU Assembly) *2 Main Body ECU (Network Gateway ECU)
*3 Courtesy Light Assembly LH *4 Front Door Courtesy Light Switch Assembly (LH)
*5 Front Door Lock Assembly LH *6 Courtesy Light Assembly RH
*7 Door Control Receiver *8 Front Door Courtesy Light Switch Assembly (RH)
*9 Front Door Lock Assembly RH *10

  • Engine Switch (Push Start Switch)


    • Engine Switch (Push Start Switch) Illumination Light
*11

  • Transponder Key Amplifier


    • Key Illumination Light

 *12

  • Steering Column Upper with Switch Bracket Assembly


    • Ignition Switch (Ignition or Starter Switch Assembly)
*a Refer to the Service Bulletin for the installation position of the part. - -

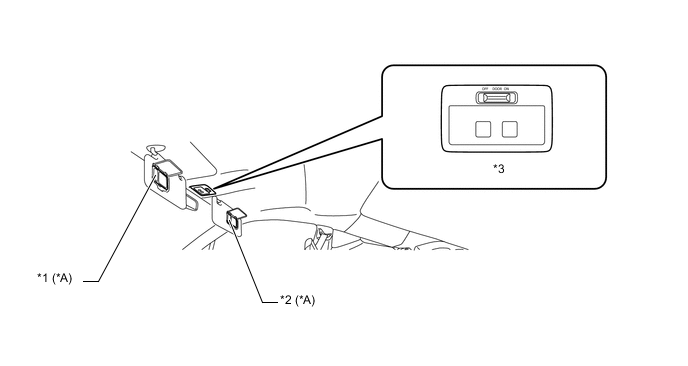

A004GLCE02
Text in Illustration
*A Models with Vanity Light - -
*1 Vanity Light LH *2 Vanity Light RH
*3 Map Light Assembly - -

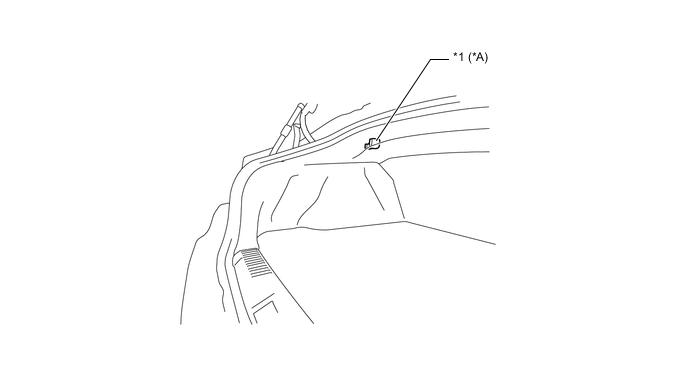

A004GUQE02
Text in Illustration
*A Models with No.1 Luggage Compartment Light Assembly - -
*1 No.1 Luggage Compartment Light Assembly - -
