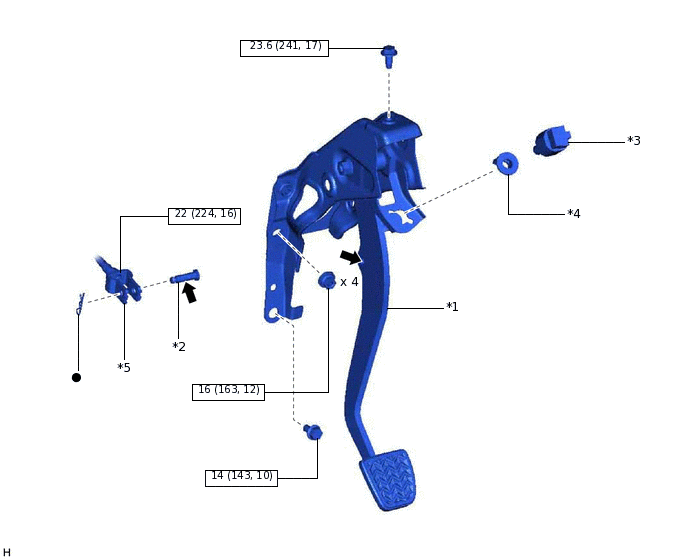

BRAKE PEDAL(for RHD) COMPONENTS

*1	BRAKE PEDAL SUPPORT ASSEMBLY	*2	PUSH ROD PIN
*3	STOP LIGHT SWITCH ASSEMBLY	*4	STOP LIGHT SWITCH MOUNTING ADJUSTER
*5	BRAKE MASTER CYLINDER PUSH ROD CLEVIS	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
	Lithium soap base glycol grease	-	-

*1

BRAKE PEDAL SUPPORT ASSEMBLY

*2

PUSH ROD PIN

*3

STOP LIGHT SWITCH ASSEMBLY

*4

STOP LIGHT SWITCH MOUNTING ADJUSTER

*5

BRAKE MASTER CYLINDER PUSH ROD CLEVIS

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Lithium soap base glycol grease

-

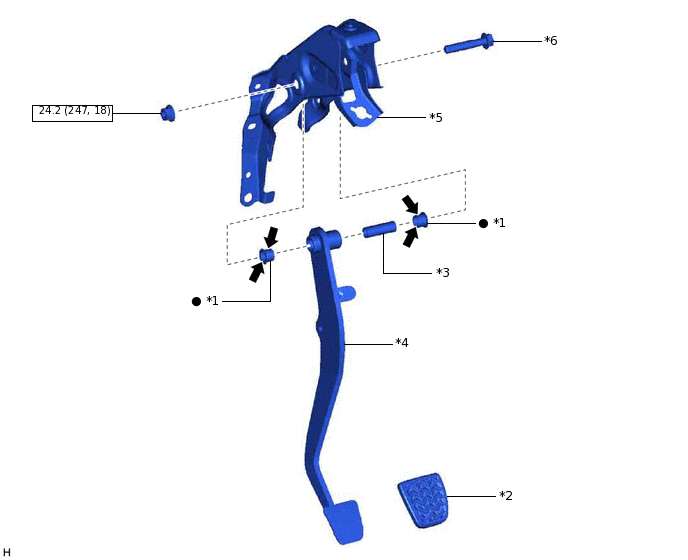

*1	BRAKE PEDAL BUSHING	*2	BRAKE PEDAL PAD
*3	BRAKE PEDAL SHAFT COLLAR	*4	BRAKE PEDAL SUB-ASSEMBLY
*5	BRAKE PEDAL SUPPORT SUB-ASSEMBLY	*6	BRAKE PEDAL SHAFT
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
	Lithium soap base glycol grease	-	-
