LIN COMMUNICATION SYSTEM

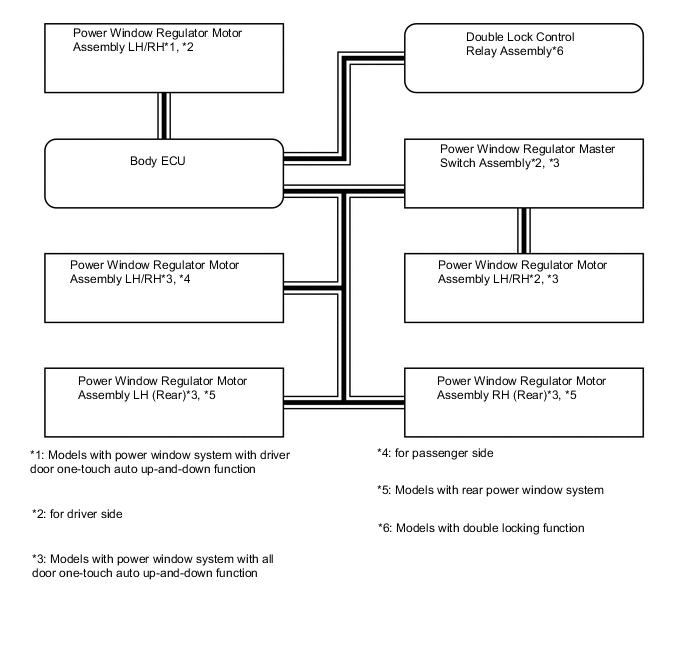

Figure 1. Door Bus

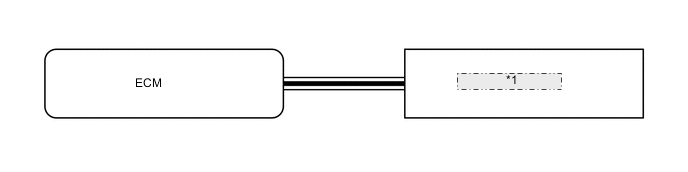

Figure 2. Charging Bus (Except Models with 1KD-FTV Engine or 2KD-FTV Engine)
| *1 | Generator Assembly |

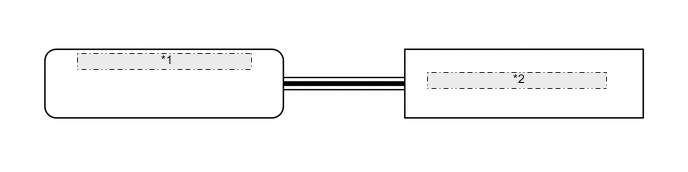

Figure 3. Certification Bus (Models with Entry and Start System without ID Code Box)
| *1 | Certification ECU (Smart Key ECU Assembly) |
| *2 | Steering Lock Actuator Assembly |

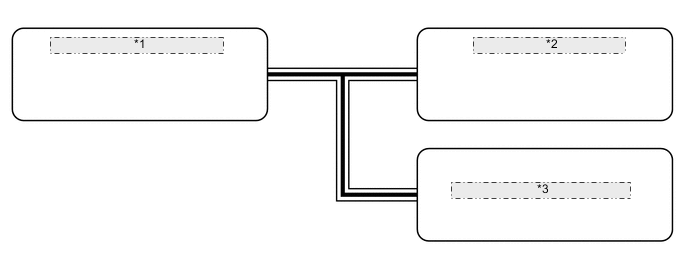

Figure 4. Certification Bus (Models with Entry and Start System with ID Code box)
| *1 | Certification ECU (Smart Key ECU Assembly) |
| *2 | ID Code Box (Immobiliser Code ECU) |
| *3 | Steering Lock Actuator Assembly |

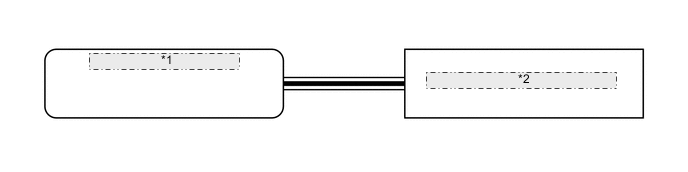

Figure 5. Air Conditioning Bus (Models with Automatic Air Conditioning System)
| *1 | Air Conditioning Amplifier Assembly |
| *2 | Air Conditioning Control Assembly |
