SFI SYSTEM(w/ Canister Pump Module) FREEZE FRAME DATA

  1. DESCRIPTION

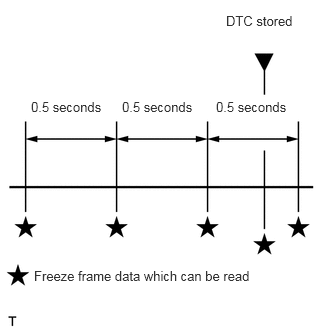

    A103809E88

    The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was moving or stationary, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

    Tip:

    If it is impossible to replicate the problem even though a DTC is detected, confirm the freeze frame data.

    The ECM records engine conditions in the form of freeze frame data every 0.5 seconds. Using the GTS, 5 separate sets of freeze frame data can be checked.

    • 3 data sets before the DTC was stored.

    • 1 data set when the DTC was stored.

    • 1 data set after the DTC was stored.

    These data sets can be used to simulate the condition of the vehicle around the time of the occurrence the malfunction. The data may assist in identifying the cause of the malfunction, and judging whether it was temporary or not.

  2. PENDING FREEZE FRAME DATA

    Tip:

    Pending freeze frame data is stored when a 2 trip DTC is first detected during the first trip.

    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Turn the GTS on.

    4. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

      Powertrain > Engine and ECT > Trouble Codes

    5. Select a DTC in order to display its pending freeze frame data.

      Tip:

      • Pending freeze frame data is cleared when any of the following occurs.

        • Using the GTS, the DTCs cleared.

        • The cable is disconnected from the negative (-) auxiliary battery terminal.

        • 40 trips with the engine fully warmed up have been performed after returning to normal. (Pending freeze frame data will not be cleared by only returning the system to normal.)

      • With previous pending freeze frame data stored, if pending freeze frame data is newly stored when a 2 trip DTC is detected in the first trip, the old freeze frame data will be replaced with the new data of the newly detected DTC in the next trip.

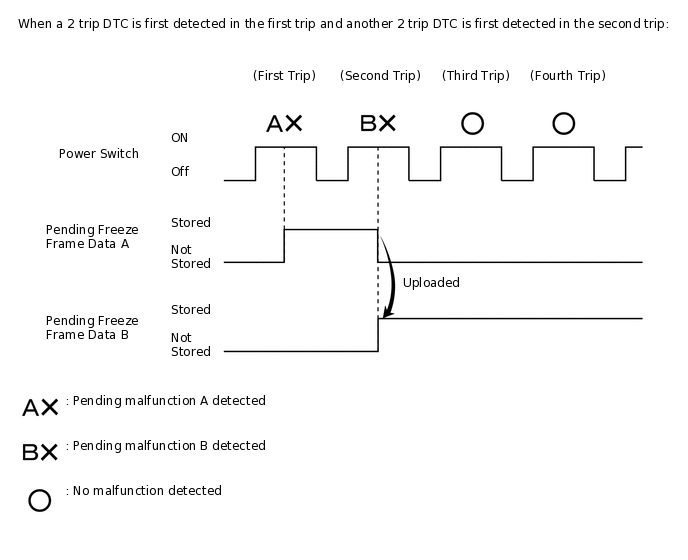

      A251781E28

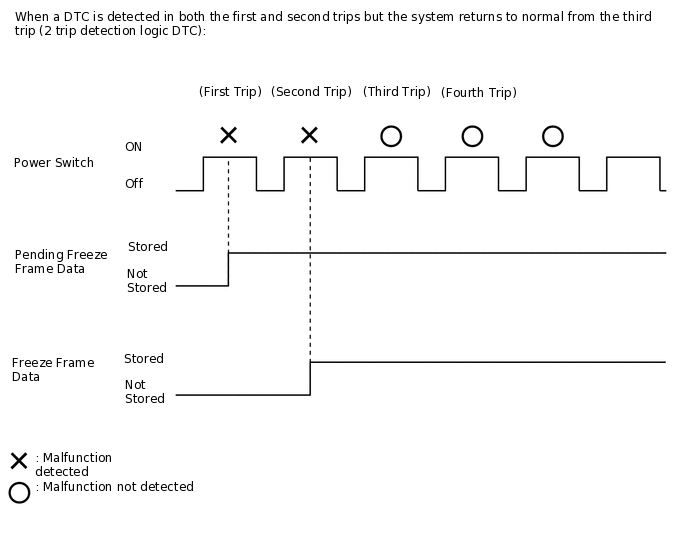

      A251782E29

  3. LIST OF FREEZE FRAME DATA

    Powertrain > Engine and ECT

    Tester Display

    Vehicle Speed

    Engine Speed

    Calculate Load

    Vehicle Load

    MAF

    Atmosphere Pressure

    MAP

    Coolant Temp

    Intake Air

    Engine Run Time

    Initial Engine Coolant Temp

    Coolant Temp Variation after Waterpump Start

    Initial Intake Air Temp

    Intake Air Temp Variation after Engine Start

    Battery Voltage

    Throttle Sensor Volt %

    Throttl Sensor #2 Volt %

    Throttle Sensor Position

    Throttle Motor DUTY

    Throttle Position

    ISC Flow

    ISC Position

    ISC Feedback Value

    ISC Learning Value

    Electric Load Feedback Val

    Air Conditioner FB Val

    Low Revolution Control

    Deposit Loss Flow

    Fuel Pump Duty

    Injector (Port)

    Injection Volum (Cylinder1)

    Vacuum Pump

    Current Fuel Type

    EVAP (Purge) VSV

    Evap Purge Flow

    Purge Density Learn Value

    EVAP System Vent Valve

    EVAP Purge VSV

    Purge Cut VSV Duty

    Target Air-Fuel Ratio

    AF Lambda B1S1

    AFS Voltage B1S1

    AFS Current B1S1

    A/F Heater Duty B1S1

    O2S B1S2

    O2S Impedance B1S2

    O2 Heater B1S2

    O2 Heater Curr Val B1S2

    Short FT #1

    Long FT #1

    Total FT #1

    Fuel System Status #1

    Fuel System Status #2

    IGN Advance

    Knock Feedback Value

    Knock Correct Learn Value

    Idle Spark Advn Ctrl #1

    Idle Spark Advn Ctrl #2

    Idle Spark Advn Ctrl #3

    Idle Spark Advn Ctrl #4

    Target EGR Position

    EGR Step Position

    Actual VVT Angle #1

    VVT Control Status #1

    VVT Advance Fail

    Catalyst Temp B1S1

    Catalyst Temp B1S2

    Closed Throttle Position SW

    Fuel Cut Condition

    TC Terminal

    Time after DTC Cleared

    Distance from DTC Cleared

    Warmup Cycle Cleared DTC

    Dist Batt Cable Disconnect

    IG OFF Elapsed Time

    TC and TE1

    Total Distance Traveled

    Ignition Trig. Count

    Cylinder #1 Misfire Count

    Cylinder #2 Misfire Count

    Cylinder #3 Misfire Count

    Cylinder #4 Misfire Count

    All Cylinders Misfire Count

    Misfire RPM

    Misfire Load

    Misfire Margin

    Engine Speed (Starter Off)

    Starter Count

    Run Dist of Previous Trip

    Engine Starting Time

    Previous Trip Coolant Temp

    Previous Trip Intake Temp

    Engine Oil Temperature

    Previous Trip Eng Oil Temp

    Ambient Temp for A/C

    Previous Trip Ambient Temp

    Engine Start Hesitation

    Low Rev for Eng Start

    Minimum Engine Speed

    A/F Learn Value Idle #1

    A/F Learn Value Low #1

    A/F Learn Value Mid1 #1

    A/F Learn Value Mid2 #1

    A/F Learn Value High #1

    Electric Fan Motor

    Idle Fuel Cut

    FC TAU

    Communication with HV

    Communication with Brake

    A/F Sensor Determination (worst value) #1

    Engine Speed Fluctuation Avg (worst value) #1

    Engine Speed Fluctuation Avg (worst value) #2

    Engine Speed Fluctuation Avg (worst value) #3

    Engine Speed Fluctuation Avg (worst value) #4

    Sports Mode Switch

    Requested Engine Torque

    HV Target Engine Speed

    Actual Engine Torque

    Engine Run Time

    Request Engine Run Time

    Judge Time Engine Ignition

    Judge Time Engine Output

    Fuel Level

    ISC Learning

    F/C for Engine Stop Req

    Engine Independent

    Racing Operation

    Request Warm-up

    Engine Independent Control

    ISC Learning Value

    Engine Speed

    AFS Voltage B1S1

    O2S B1S2

    AF Lambda B1S1

    Short FT #1

    Long FT #1

    Total FT #1

    Fuel System Status #1

    Fuel System Status #2
