FRONT SEAT CUSHION HEATER COMPONENTS

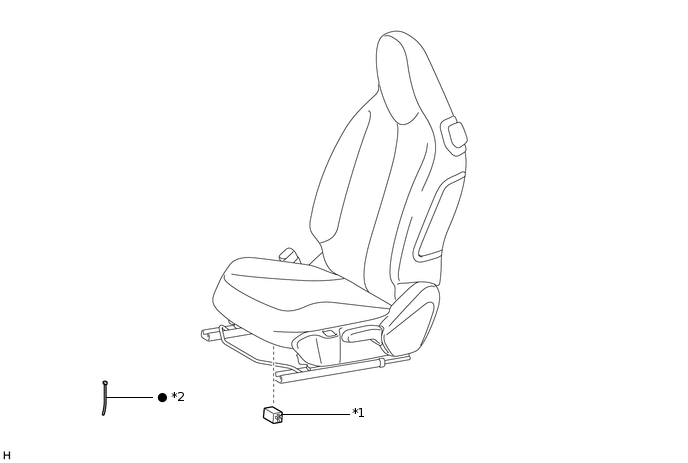

ILLUSTRATION
*1 |
SEAT HEATER CONTROL SUB-ASSEMBLY |
*2 |
WIRE HARNESS CLAMP |
● |
Non-reusable part |
- |
- |
ILLUSTRATION
*A |
w/o Seat Belt Warning System |
*B |
w/ Seat Belt Warning System |
*C |
for Front Passenger Side |
*D |
for Driver Side |
*1 |
FRONT SEAT INNER BELT ASSEMBLY |
*2 |
WAVE WASHER |
*3 |
WIRE HARNESS CLAMP |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
ILLUSTRATION
*A |
w/o Vertical Adjuster |
*B |
w/ Vertical Adjuster |
*1 |
FRONT SEAT CUSHION SHIELD |
*2 |
FRONT SEAT INNER CUSHION SHIELD |
*3 |
HEATER SWITCH WITH COVER |
*4 |
RECLINING ADJUSTER RELEASE HANDLE |
*5 |
VERTICAL ADJUSTING HANDLE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
ILLUSTRATION
*1 |
SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD |
*2 |
SEAT COVER FASTENER RETAINER |
*3 |
WIRE HARNESS CLAMP |
- |
- |
● |
Non-reusable part |
- |
- |

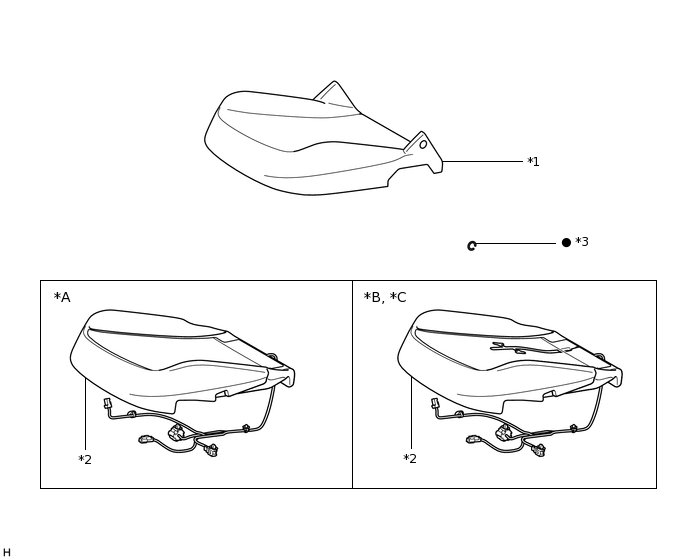

ILLUSTRATION
*A |
w/o Seat Belt Warning System |
*B |
w/ Seat Belt Warning System |
*C |
for Front Passenger Side |
- |
- |
*1 |
SEPARATE TYPE FRONT SEAT CUSHION COVER |
*2 |
FRONT SEAT CUSHION HEATER (SEPARATE TYPE FRONT SEAT CUSHION PAD) |
*3 |
HOG RING |
- |
- |
● |
Non-reusable part |
- |
- |
