FRONT PASSENGER AIRBAG ASSEMBLY ON-VEHICLE INSPECTION

PROCEDURE

  1. CHECK INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)

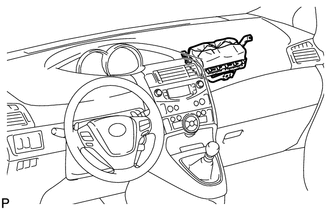

    1. B223151

      Perform a diagnostic system check (Click here).

    2. With the instrument panel passenger airbag installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the instrument panel passenger airbag with a new one:

      Cuts, minute cracks or marked discoloration on the instrument panel passenger airbag.

  2. CHECK INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)

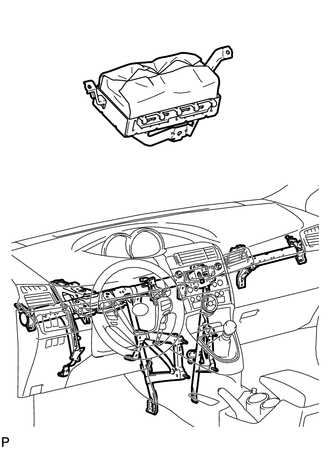

    1. B223152

      Perform a diagnostic system check (Click here).

    2. With the instrument panel passenger airbag removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the instrument panel passenger airbag with a new one:

      • Cuts, minute cracks or marked discoloration on the instrument panel passenger airbag.

      • Cracks or other damage to the connector.

      • Deformation or cracks in the instrument panel reinforcement.

      CAUTION:

      For removal and installation of the instrument panel passenger airbag, be sure to follow the correct procedure.
