LUBRICATION SYSTEM


  1. CONSTRUCTION


    1. An oil filter with a replaceable oil filter element is used. The oil filter element uses a high-performance filter paper to improve filtration performance. It is also combustible for environmental friendliness.

    2. A plastic oil filter cap assembly is used for weight reduction.

    3. This oil filter has a structure which can allow the draining of the oil remaining in the oil filter. This prevents oil from spattering when replacing the oil filter element and allows the technician to work without touching hot oil.

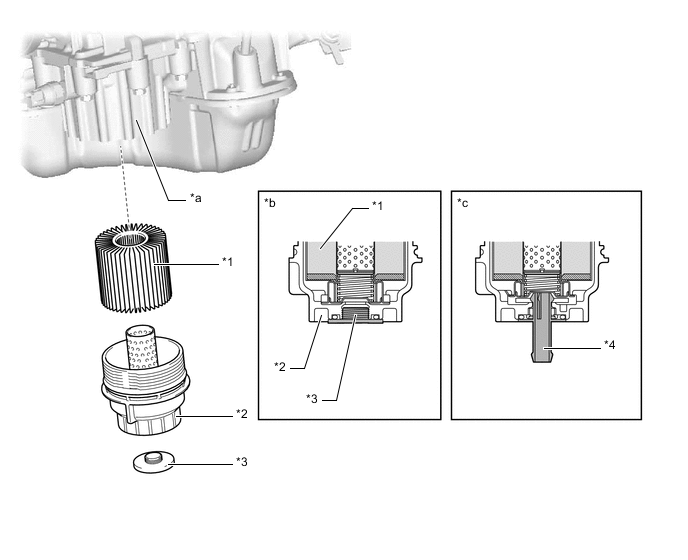

      A01R27SC01
      *1 Oil Filter Element *2 Filter Cap Sub-assembly
      *3 Drain Plug *4 Drain Pipe
      *a Oil Filter Case *b Cross Section
      *c When Draining Oil - -
