AIR CONDITIONING UNIT COMPONENTS
ILLUSTRATION
*A |
w/o Spare Tire, for Compact Spare Tire |
*B |
for Full Size Spare Tire |
*1 |
DECK BOARD ASSEMBLY |
*2 |
BATTERY SERVICE COVER |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |

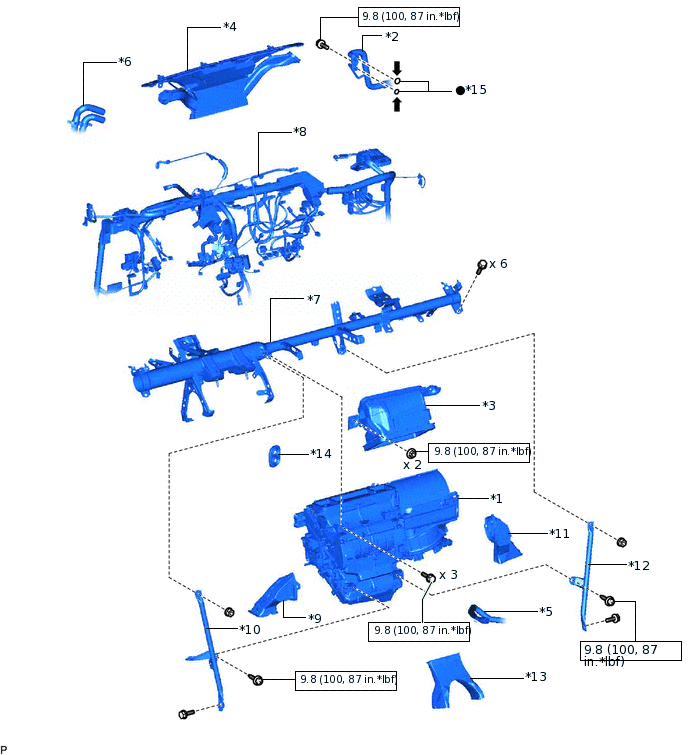

ILLUSTRATION
*1 |
AIR CONDITIONER UNIT ASSEMBLY |
*2 |
AIR CONDITIONING TUBE |
*3 |
AIR DUCT ASSEMBLY |
*4 |
DEFROSTER NOZZLE ASSEMBLY |
*5 |
DRAIN COOLER HOSE |
*6 |
HEATER WATER HOSE |
*7 |
INSTRUMENT PANEL REINFORCEMENT ASSEMBLY |
*8 |
INSTRUMENT PANEL WIRE |
*9 |
NO. 1 AIR DUCT SUB-ASSEMBLY |
*10 |
NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY |
*11 |
NO. 2 AIR DUCT SUB-ASSEMBLY |
*12 |
NO. 2 INSTRUMENT PANEL BRACE SUB-ASSEMBLY |
*13 |
REAR NO. 1 AIR DUCT |
*14 |
GROMMET |
*15 |
O-RING |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

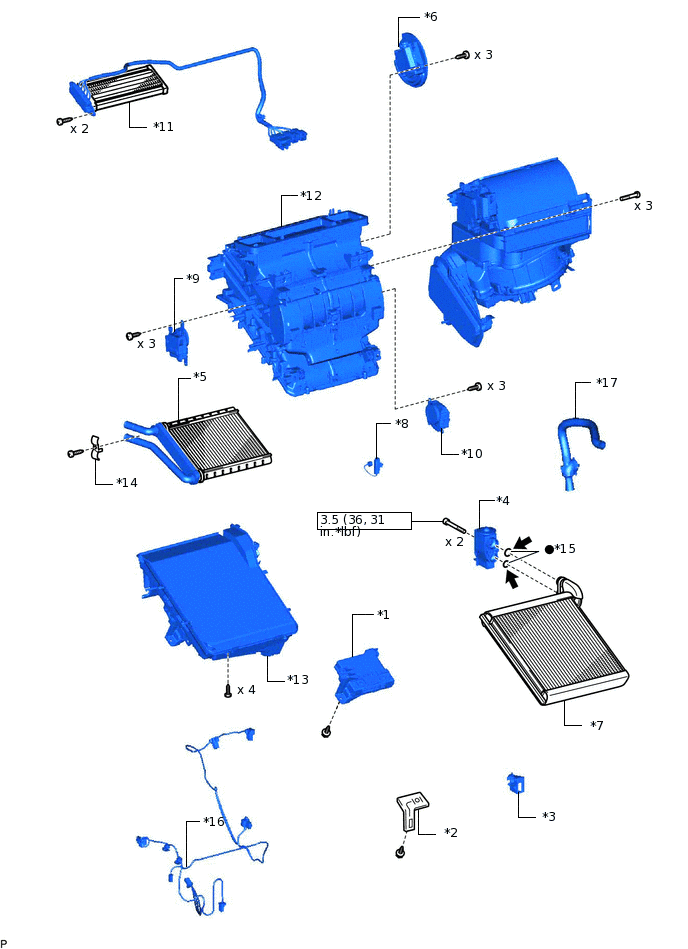

ILLUSTRATION
*1 |
AIR CONDITIONING AMPLIFIER ASSEMBLY |
*2 |
CONSOLE MOUNTING BRACKET LH |
*3 |
CONSOLE MOUNTING BRACKET RH |
*4 |
COOLER EXPANSION VALVE |
*5 |
HEATER RADIATOR UNIT SUB-ASSEMBLY |
*6 |
NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
*7 |
NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY |
*8 |
NO. 1 COOLER THERMISTOR |
*9 |
NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
*10 |
NO. 3 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
*11 |
QUICK HEATER ASSEMBLY |
*12 |
UPPER HEATER CASE |
*13 |
LOWER HEATER CASE |
*14 |
CLAMP |
*15 |
O-RING |
*16 |
AIR CONDITIONING HARNESS ASSEMBLY |
*17 |
AIR CONDITIONING DUCT SUB-ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
Compressor oil ND-OIL 11 or equivalent |
- |
- |
