WASHER NOZZLE(for Front) ADJUSTMENT

PROCEDURE

  1. ADJUST WASHER NOZZLE SUB-ASSEMBLY

    1. Select a washer nozzle sub-assembly so that the washer fluid spray area is as specified in On-vehicle Inspection.

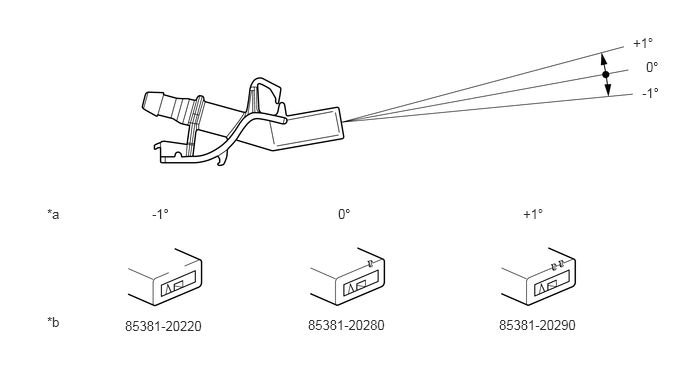

      B302196E03
      Table 1. Text in Illustration

      *a

      Washer Fluid Spray Angle

      *b

      Part Number
