REAR DOOR OUTSIDE MOULDING REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedures for the RH side and LH side.

  • The procedures listed below are for the LH side.

PROCEDURE

  1. REMOVE REAR DOOR OUTSIDE MOULDING LH

    Tip:

    When removing the rear door outside moulding LH, heat the rear door panel and rear door outside moulding LH moulding using a heat light.

    Standard

    Item

    Temperature

    Rear Door Panel

    40 to 60°C (104 to 140°F)

    Rear Door Outside Moulding LH

    20 to 30°C (68 to 86°F)
    Note:

    Do not heat the rear door panel and rear door outside moulding LH excessively.

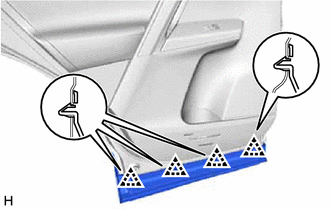

    1. B338453

      Detach the 4 clips.

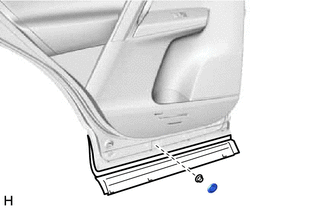

    2. B338454

      Remove the hole plug and nut.

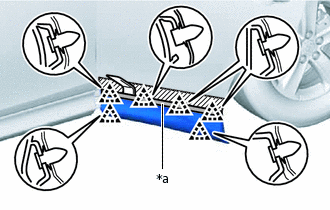

    3. B437076C01

      *a

      Double-sided Tape
      V100155

      Protective Tape

      Put protective tape around the rear door outside moulding LH.

    4. Using moulding remover D, remove the double-sided tape to detach the 6 clips and remove the rear door outside moulding LH.

      Note:

      Be careful not to damage the vehicle body.
