AUTOMATIC HEADLIGHT BEAM LEVEL CONTROL SYSTEM PARTS LOCATION

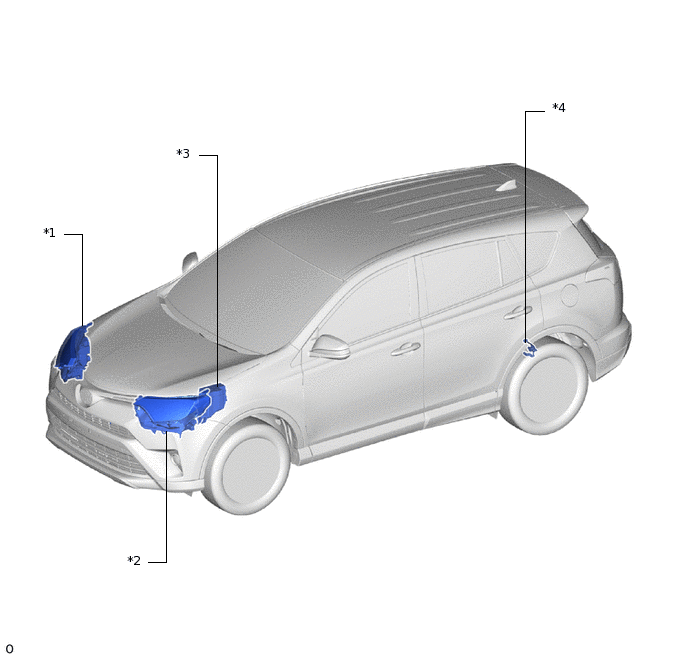

ILLUSTRATION
*1 |
HEADLIGHT UNIT RH - HEADLIGHT LEVELING MOTOR |
*2 |
HEADLIGHT UNIT LH - HEADLIGHT LEVELING MOTOR |
*3 |
NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-B NO.2 FUSE |
*4 |
REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH |

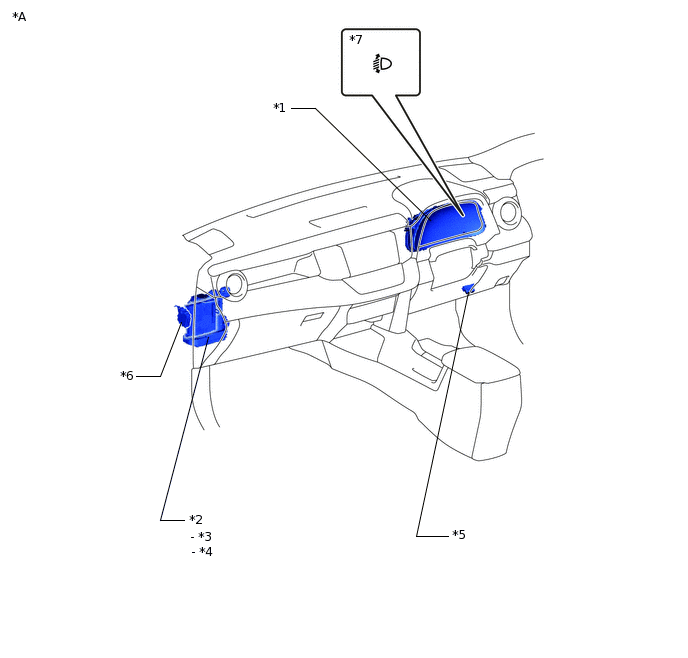

ILLUSTRATION
*A |
for LHD |
- |
- |
*1 |
COMBINATION METER ASSEMBLY |
*2 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
*3 |
ECU-IG NO.1 FUSE |
*4 |
METER FUSE |
*5 |
DLC3 |
*6 |
HEADLIGHT LEVELING ECU ASSEMBLY |
*7 |
HEADLIGHT BEAM LEVEL CONTROL SYSTEM WARNING LIGHT |
- |
- |

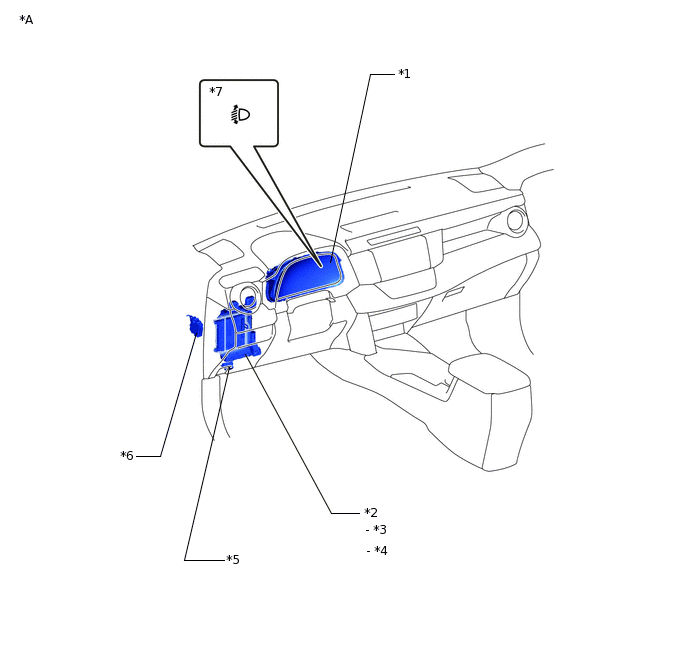

ILLUSTRATION
*A |
for RHD |
- |
- |
*1 |
COMBINATION METER ASSEMBLY |
*2 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
*3 |
ECU-IG NO.1 FUSE |
*4 |
METER FUSE |
*5 |
DLC3 |
*6 |
HEADLIGHT LEVELING ECU ASSEMBLY |
*7 |
HEADLIGHT BEAM LEVEL CONTROL SYSTEM WARNING LIGHT |
- |
- |
