BATTERY COOLING FILTER REMOVAL

PROCEDURE

  1. REMOVE REAR SEAT CUSHION ASSEMBLY

    Click here

  2. REMOVE REAR DOOR SCUFF PLATE LH

    Click here

  3. REMOVE REAR DOOR SCUFF PLATE RH

    Click here

  4. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

    Click here

  5. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

    Click here

  6. REMOVE NO. 3 BATTERY SERVICE COVER BOARD

    Tip:

    If the message "Maintenance Required for Hybrid Battery Cooling Parts at Your Dealer" is displayed on the multi-information display in the combination meter assembly, clean or replace the No. 2 and No. 3battery service cover board, and clear the DTCs to reset the learning values even if no DTCs are output.

    Click here

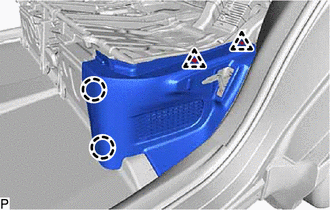

    1. C346032

      Remove the 2 clips.

    2. Detach the 2 claws and remove the No. 3 battery service cover board.

  7. REMOVE NO. 2 BATTERY SERVICE COVER BOARD

    Tip:

    Use the same procedure as for the No. 2 battery service cover board.
