SIDE TURN SIGNAL LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE

  1. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

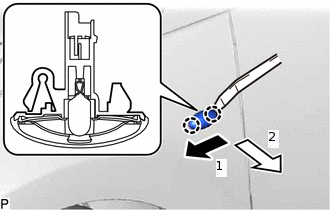

    1. E290988E01

      Using a moulding remover, disengage the 2 claws to separate the side turn signal light assembly as indicated by the arrows, in the order shown in the illustration.

    2. Disconnect the connector to remove the side turn signal light assembly.
