REAR SEAT OUTER BELT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. INSTALL OUTER BELT ANCHOR BRACKET SUB-ASSEMBLY

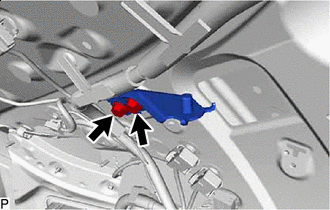

    B007ZNMC02

    1. Install the outer belt anchor bracket sub-assembly with the 2 bolts.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }
  2. INSPECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY

    Click here

  3. INSTALL REAR NO. 1 SEAT OUTER BELT ASSEMBLY

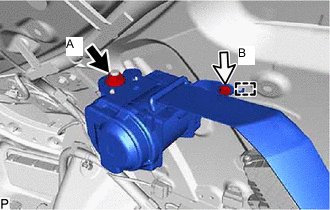

    1. B007WS3C02
      B007WXX Nut
      B00803L Bolt

      Engage the guide and temporarily install the rear No. 1 seat outer belt assembly with the nut and bolt.

    2. Fully tighten the nut (A), and then the bolt (B) to install the rear No. 1 seat outer belt assembly.

      Torque:
      Nut (A)
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }
      Bolt (B)
      12.5 N*m  { 127 kgf*cm, 9 ft.*lbf }

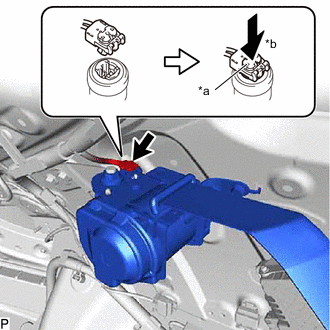

    3. B007WURC04
      *a Locking Button
      *b Lock

      Connect the pretensioner connector and lock the locking button as shown in the illustration.

      Note

      Securely lock the locking button.

    4. Check that the ELR locks.

      Note

      This check should be performed with the rear No. 1 seat outer belt assembly installed to the vehicle.


      1. With the rear No. 1 seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

  4. CONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY

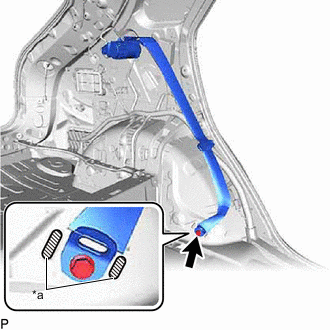

    1. B007X3ZC01
      *a Protruding Part

      Connect the floor anchor of the rear No. 1 seat outer belt assembly with the bolt.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

      Note

      Do not allow the anchor part of the rear No. 1 seat outer belt assembly to overlap the protruding parts of the floor panel.

  5. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY

    Click here

  6. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Click here

  7. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Click here

  8. INSTALL RECLINING REMOTE CONTROL BEZEL RH (for RH Side)

    w/o Rear Power Seat System:

    Click here

  9. INSTALL FOLD SEAT SWITCH ASSEMBLY (for RH Side)

    w/ Rear Power Seat System:

    Click here

  10. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)

    Click here

  11. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)

    Click here

  12. INSTALL ROPE HOOK ASSEMBLY (for LH Side)

    Click here

  13. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side)

    Click here

  14. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side)

    Click here

  15. INSTALL REAR FLOOR FINISH SIDE PLATE

    Click here

  16. INSTALL REAR SEAT SIDE GARNISH

    Click here

  17. INSTALL UPPER QUARTER TRIM PAD

    Click here

  18. INSTALL REAR SEAT ASSEMBLY LH (for LH Side)

    Click here

  19. INSTALL REAR SEAT ASSEMBLY RH (for RH Side)

    Click here

  20. INSTALL REAR DOOR SCUFF PLATE

    Click here

  21. INSTALL REAR FLOOR FINISH PLATE

    Click here

  22. INSTALL DECK SIDE TRIM BOX RH (except Full Size Spare Tire)

    Click here

  23. INSTALL DECK SIDE TRIM BOX RH (for Full Size Spare Tire)

    Click here

  24. INSTALL FRONT DECK FLOOR BOX (for LH Side)

    w/ Spare Tire:

    Click here

  25. INSTALL DECK FLOOR BOX LH (for LH Side)

    w/o Spare Tire:

    Click here

  26. INSTALL DECK FLOOR BOX RH (w/o Spare Tire)

    Click here

  27. INSTALL REAR NO. 4 FLOOR BOARD (except Full Size Spare Tire)

    Click here

  28. INSTALL REAR NO. 4 FLOOR BOARD (for Full Size Spare Tire)

    Click here

  29. INSTALL REAR DECK FLOOR BOX (w/ Spare Tire)

    Click here

  30. INSTALL SPARE WHEEL COVER (for Compact Spare Tire)

    Click here

  31. INSTALL REAR FLOOR CARPET (w/o Spare Tire)

    Click here

  32. INSTALL REAR NO. 3 FLOOR BOARD

    Click here

  33. INSTALL DECK BOARD ASSEMBLY

    Click here

  34. INSTALL TONNEAU COVER ASSEMBLY

    Click here

  35. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  36. INSPECT SRS WARNING LIGHT

    Click here
