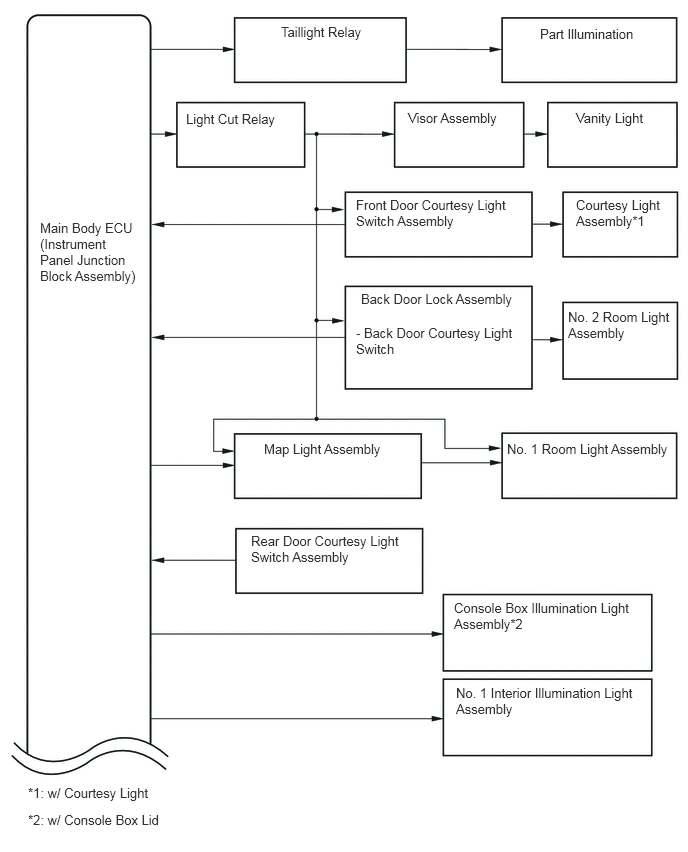

LIGHTING SYSTEM SYSTEM DIAGRAM

E268778E02
E268779E02

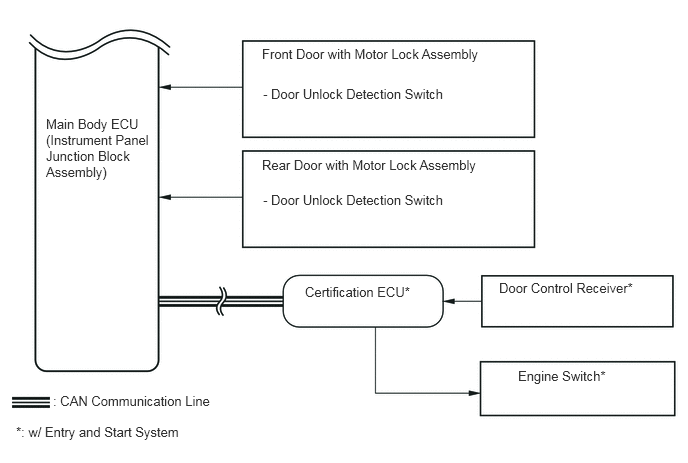

Table 1. Communication Table (w/ Entry and Start System)

Sender

Receiver

Signal

Line

Main Body ECU

Certification ECU

(w/ Entry and Start System)

Engine switch illumination signal

CAN

Certification ECU

(w/ Entry and Start System)

Main Body ECU

Electrical key signal

CAN
