IMMOBILISER SYSTEM(w/o Entry and Start System), Diagnostic DTC:B2796

DTC Code DTC Name
B2796 No Communication in Immobiliser System

DESCRIPTION

This DTC is stored when a door control transmitter assembly is used to turn the ignition switch to ON but no communication occurs between the door control transmitter assembly and transponder key ECU assembly.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Note

B2796

No Communication in Immobiliser System

The key ID code cannot be transmitted to the transponder key ECU assembly (1 trip detection logic*).

  • Door control transmitter assembly

  • Wire harness or connector

  • Transponder key coil

  • Transponder key ECU assembly

  • DTC Output Confirmation Operation:

  • Insert the door control transmitter assembly into the ignition key cylinder, turn the ignition switch from off to ON and wait at least 20 seconds.

  • *: Only output while a malfunction is present.

Table 1. Vehicle Condition and Fail-safe Operation when Malfunction Detected

Vehicle Condition when Malfunction Detected

Fail-safe Operation when Malfunction Detected

Engine cannot be started

-
Table 2. Related Data List and Active Test

DTC No.

Data List and Active Test

B2796

-

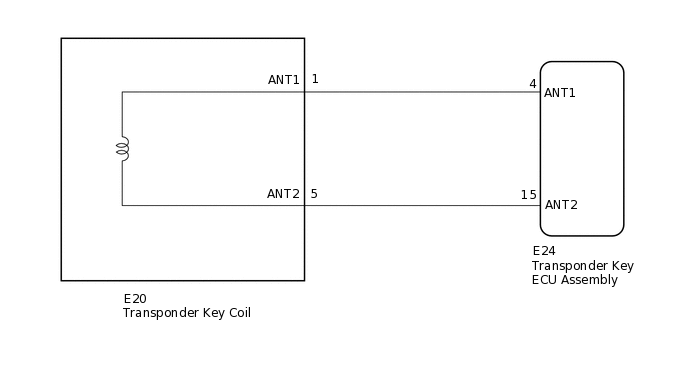

WIRING DIAGRAM

B329324E28

CAUTION / NOTICE / HINT

Note:

  • If the transponder key ECU assembly or a door control transmitter assembly is replaced, refer to Service Bulletin.

  • After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".

PROCEDURE

  1. CLEAR DTC

    1. Clear the DTCs.

      Body Electrical > Immobiliser > Clear DTCs

    Result

    Proceed to

    NEXT
    NEXT

  2. CHECK FOR DTC

    1. Perform "DTC Output Confirmation Operation" procedure.

    2. Check for DTCs.

      Body Electrical > Immobiliser > Trouble Codes

      OK

      B2796 is not output.

    Result

    Result

    Proceed to

    DTC B2796 is not output

    A

    DTC B2796 is output for all of the door control transmitter assemblies

    B

    DTC B2796 is output for any of the door control transmitter assemblies

    C
    A

    USE SIMULATION METHOD TO CHECK

    Click hereClick hereClick here

    C

    REPLACE DOOR CONTROL TRANSMITTER ASSEMBLYClick here

    B

  3. REPLACE TRANSPONDER KEY ECU ASSEMBLY

    1. Replace the transponder key ECU assembly with a new one.

      Tip:

      Refer to Service Bulletin.

      Note:

      Key ID code registration is necessary when replacing a transponder key ECU assembly, refer to Service Bulletin.

    Result

    Proceed to

    NEXT
    NEXT

  4. CLEAR DTC

    1. Clear the DTCs.

      Body Electrical > Immobiliser > Clear DTCs

    Result

    Proceed to

    NEXT
    NEXT

  5. CHECK FOR DTC

    1. Perform "DTC Output Confirmation Operation" procedure.

    2. Check for DTCs.

      Body Electrical > Immobiliser > Trouble Codes

      OK

      DTC B2796 is not output.

    Result

    Result

    Proceed to

    B2796 is not output

    A

    B2796 is output

    B
    A

    END (TRANSPONDER KEY ECU ASSEMBLY WAS DEFECTIVE)

    B

    REPLACE DOOR CONTROL TRANSMITTER ASSEMBLY THAT DTC IS OUTPUT

  6. REPLACE DOOR CONTROL TRANSMITTER ASSEMBLY

    1. Replace the door control transmitter assembly for which the DTC was stored.

      Note:

      Key ID code registration is necessary when replacing a door control transmitter assembly, refer to Service Bulletin.

    Result

    Proceed to

    NEXT
    NEXT

  7. CLEAR DTC

    1. Clear the DTCs.

      Body Electrical > Immobiliser > Clear DTCs

    Result

    Proceed to

    NEXT
    NEXT

  8. CHECK FOR DTC

    1. Perform "DTC Output Confirmation Operation" procedure.

    2. Check for DTCs.

      Body Electrical > Immobiliser > Trouble Codes

      OK

      DTC B2796 is not output.

    Result

    Result

    Proceed to

    B2796 is not output

    A

    B2796 is output

    B
    A

    END (DOOR CONTROL TRANSMITTER ASSEMBLY WAS DEFECTIVE)

    B

    REPLACE TRANSPONDER KEY ECU ASSEMBLY
