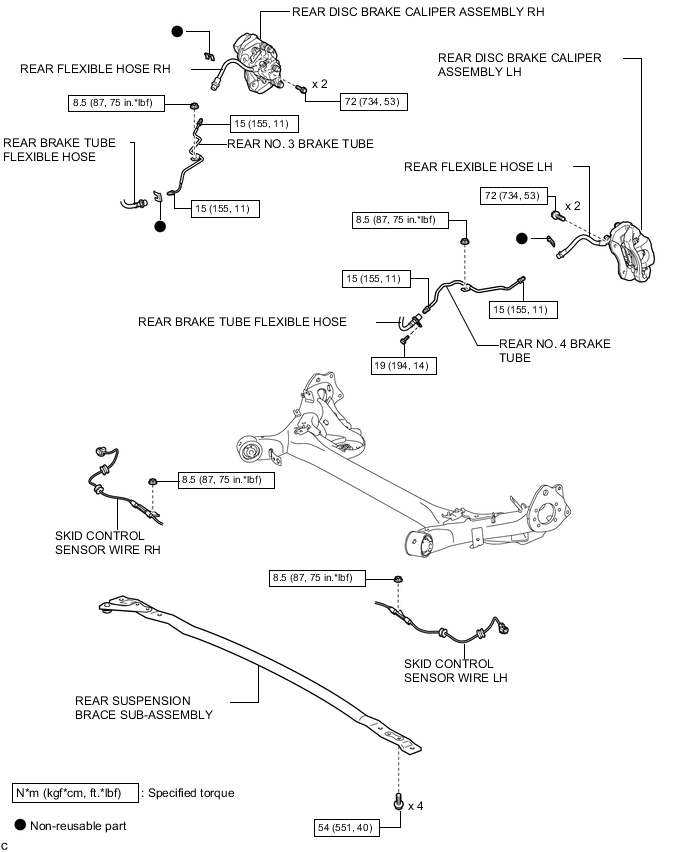

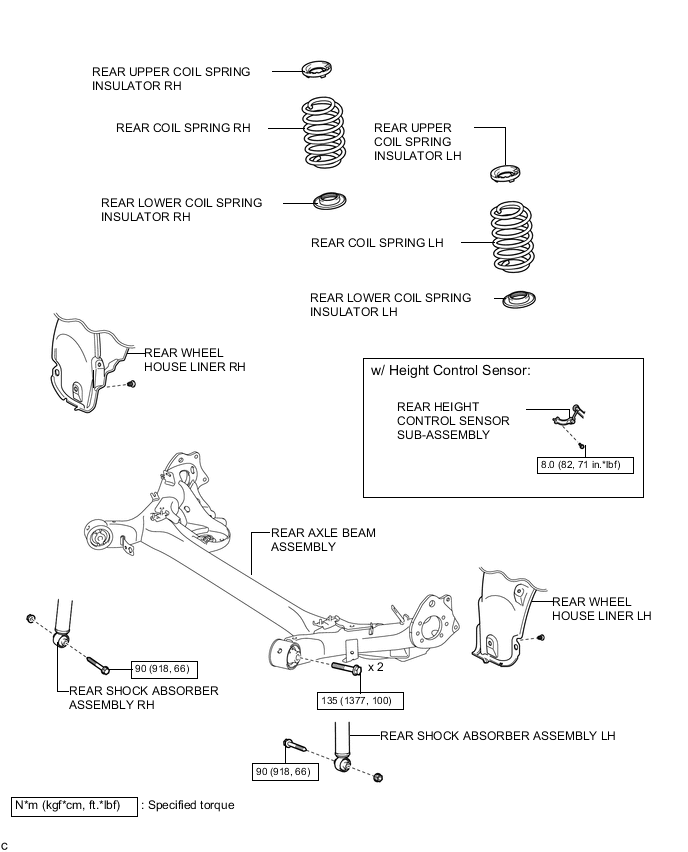

REAR AXLE BEAM COMPONENTS
ILLUSTRATION
| *a | REAR FLOOR SIDE MEMBER COVER RH |
ILLUSTRATION
ILLUSTRATION
ILLUSTRATION
ILLUSTRATION
| *1 | REAR AXLE BEAM ASSEMBLY |
| *2 | REAR AXLE CARRIER BUSHING RH |
| *3 | REAR AXLE CARRIER BUSHING LH |
| *4 | Non-reusable part |
