LANE DEPARTURE ALERT SYSTEM(w/ Steering Control) Power Source Circuit

DTC Code DTC Name
Power Source Circuit

DESCRIPTION

This circuit provides power to operate the forward recognition camera.

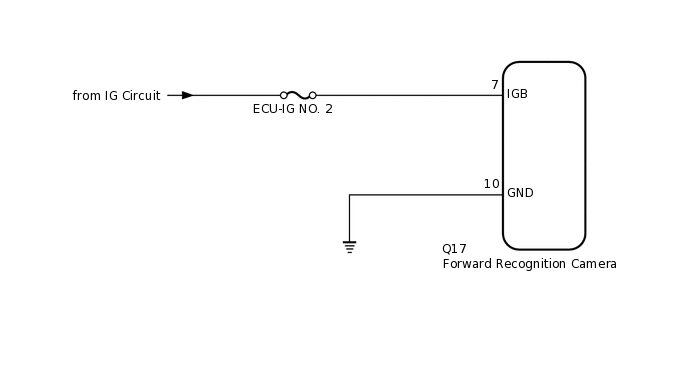

WIRING DIAGRAM

E256368E38

CAUTION / NOTICE / HINT

Note:

Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

  1. CHECK HARNESS AND CONNECTOR (POWER SOURCE VOLTAGE)

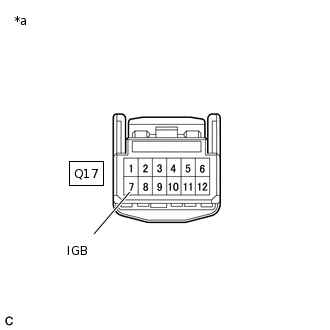

    1. C265807C03

      *a

      Front view of wire harness connector

      (to Forward Recognition Camera)

      Disconnect the Q17 forward recognition camera connector.

    2. Turn the power switch on (IG).

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection

      Condition

      Specified Condition

      Q17-7 (IGB) - Body ground

      Power switch on (IG)

      11 to 14 V

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  2. CHECK HARNESS AND CONNECTOR (FORWARD RECOGNITION CAMERA - BODY GROUND)

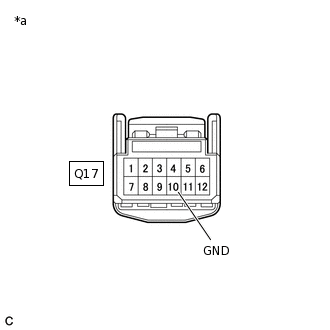

    1. C265807C04

      *a

      Front view of wire harness connector

      (to Forward Recognition Camera)

      Disconnect the Q17 forward recognition camera connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      Q17-10 (GND) - Body ground

      Always

      Below 1 Ω

    Result

    Proceed to

    OK

    NG
    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

    Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
