CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY(When Using the Engine Support Bridge) COMPONENTS

ILLUSTRATION

A001URTC03
*1 NO. 1 ENGINE UNDER COVER *2 REAR ENGINE UNDER COVER LH
*3 REAR ENGINE UNDER COVER RH - -
B008KAN N*m (kgf*cm, ft.*lbf): Specified torque - -

ILLUSTRATION

A001UDJC02
*1 FRONT FLOOR COVER LH *2 FRONT FLOOR COVER RH
B008KAN N*m (kgf*cm, ft.*lbf): Specified torque - -

ILLUSTRATION

A001TE0C01
*1 REFILL PLUG *2 OVERFLOW PLUG
*3 NO. 1 TRANSMISSION OIL FILLER TUBE *4 GASKET
B008KAN N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

ILLUSTRATION

A002YH3C04
*A for LHD - -
*1 COWL BODY MOUNTING REINFORCEMENT LH *2 COWL BODY MOUNTING REINFORCEMENT RH
*3 NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL *4 OUTER COWL TOP PANEL SUB-ASSEMBLY
*5 WATER GUARD PLATE LH - -
B008LMA Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) B008KAN N*m (kgf*cm, ft.*lbf): Specified torque

ILLUSTRATION

A001XELC03
*A for RHD - -
*1 COWL BODY MOUNTING REINFORCEMENT LH *2 COWL BODY MOUNTING REINFORCEMENT RH
*3 NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL *4 OUTER COWL TOP PANEL SUB-ASSEMBLY
*5 WATER GUARD PLATE LH - -
B008LMA Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) B008KAN N*m (kgf*cm, ft.*lbf): Specified torque

ILLUSTRATION

A001W8LC01
*1 AIR CLEANER CAP WITH AIR CLEANER HOSE *2 AIR CLEANER CASE SUB-ASSEMBLY
*3 BATTERY CLAMP SUB-ASSEMBLY *4 ECM
*5 NO. 1 AIR CLEANER INLET *6 RADIATOR COVER
*7 AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY *8 NO. 2 EARTH WIRE
*9 NECK - -
B008KAN N*m (kgf*cm, ft.*lbf): Specified torque - -

ILLUSTRATION

A001VNUC01
*1 ENGINE MOUNTING STAY LH *2 ENGINE WIRE
*3 NO. 1 TRANSMISSION CONTROL CABLE BRACKET *4 TRANSMISSION CONTROL CABLE ASSEMBLY
*5 TRANSVERSE ENGINE ENGINE MOUNTING BRACKET *6 TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR
*7 WATER HOSE - -
B008LMA Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) B008KAN N*m (kgf*cm, ft.*lbf): Specified torque
● Non-reusable part - -

ILLUSTRATION

A001Y7QC01
*1 COLUMN HOLE COVER SILENCER SHEET *2 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
*3 NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY *4 NO. 2 ENGINE MOVING CONTROL ROD
*5 NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY *6 REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH
*7 REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH - -
B008LMA Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) B008KAN N*m (kgf*cm, ft.*lbf): Specified torque

ILLUSTRATION

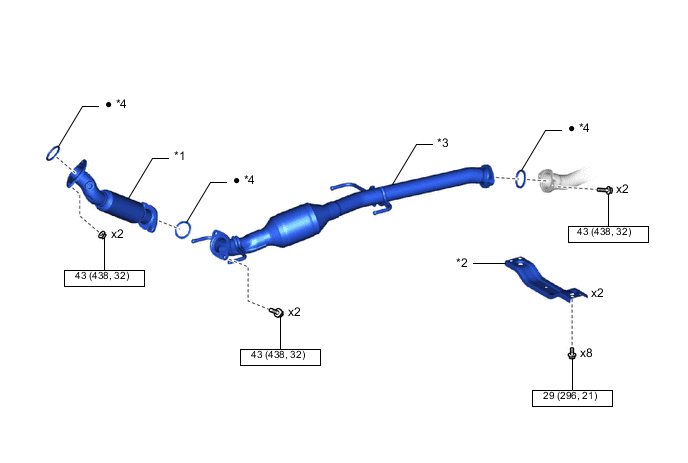

A001W3EC01
*1 FRONT EXHAUST PIPE ASSEMBLY *2 FRONT FLOOR CENTER BRACE
*3 NO. 2 CENTER EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) *4 EXHAUST PIPE GASKET
B008KAN N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

ILLUSTRATION

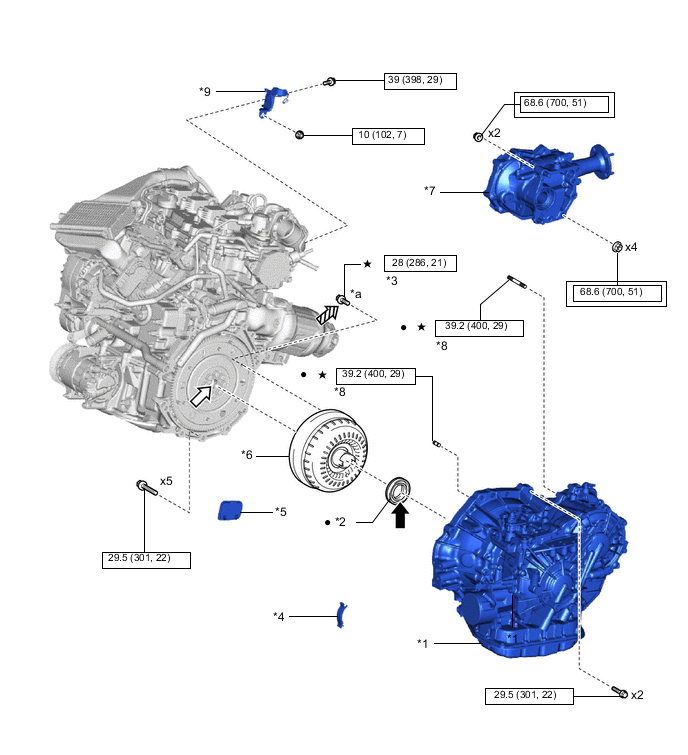

A001T7PC02
*1 CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY *2 CVT OIL PUMP TYPE T OIL SEAL
*3 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT *4 FLYWHEEL HOUSING SIDE COVER
*5 FLYWHEEL HOUSING UNDER COVER *6 TORQUE CONVERTER ASSEMBLY
*7 TRANSFER ASSEMBLY *8 TRANSFER AND TRANSAXLE SETTING STUD BOLT
*9 WIRE HARNESS CLAMP BRACKET - -
*a

BLACK COLOR: x 1

SILVER COLOR: x 5

 - -
B008LMA Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) B008KAN N*m (kgf*cm, ft.*lbf): Specified torque
● Non-reusable part B008MD9 MP grease
B008LL0 Clutch spline grease A001UHL Adhesive 1324
★ Precoated part - -

ILLUSTRATION

A001U4DC01
*1 NO. 1 HEATER BRACKET SUB-ASSEMBLY *2 STRAIGHT SCREW PLUG
*3 WIRE HARNESS CLAMP BRACKET *4 NO. 1 BREATHER PLUG (CVT)
*5 BREATHER PLUG HOSE *6 NO. 2 BREATHER PLUG (CVT)
*7 CLAMP *8 GASKET
*9 O-RING - -
B008KAN N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part
B008MD9 Toyota Genuine CVT fluid FE - -
