EGR COOLER REMOVAL

PROCEDURE

1. REMOVE EGR VALVE WITH COOLER ASSEMBLY

   Click here

2. REMOVE EGR COOLER ASSEMBLY

   1.

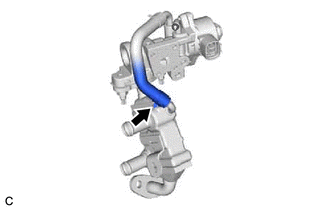

      Slide the clip and disconnect the No. 3 water by-pass hose from the EGR cooler assembly.

   2.

      Remove the 2 nuts and EGR cooler assembly from the EGR valve assembly.

   3. Remove the No. 1 EGR cooler gasket from the EGR valve assembly.
