FRONT SEAT OUTER BELT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

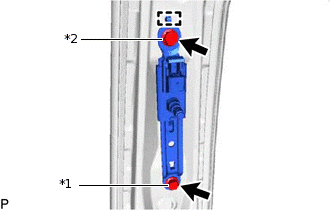

1. INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

   1.

      *1	Bolt (A)
      *2	Bolt (B)

      Attach the guide to temporarily install the front shoulder belt anchor adjuster assembly with the 2 bolts.

   2. Tighten the bolt (A).

      42 N*m

      428 kgf*cm

      31 ft.*lbf

   3. Tighten the bolt (B).

      42 N*m

      428 kgf*cm

      31 ft.*lbf

2. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH

   1.

      Align the 2 claws with the seat belt positioning holes, and install the retractor of the front seat outer belt assembly LH with the bolt as shown in the illustration.

      12.5 N*m

      127 kgf*cm

      9 ft.*lbf

   2.

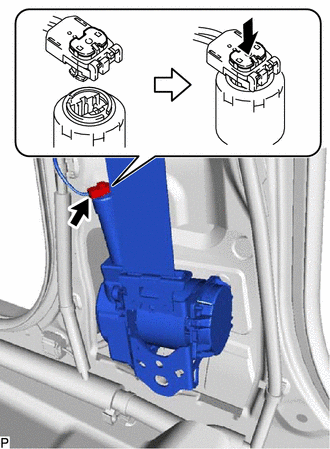

      Connect the pretensioner connector and lock the locking button as shown in the illustration.

      Note:

      Securely lock the locking button.

   3. Connect the shoulder anchor of the front seat outer belt assembly with the nut.

      42 N*m

      428 kgf*cm

      31 ft.*lbf

3. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH (for Front Passenger Seat Belt with Selectable Force Limiter)

   1.

      Align the 2 claws with the seat belt positioning holes, and install the retractor of the front seat outer belt assembly RH with the bolt as shown in the illustration.

      12.5 N*m

      127 kgf*cm

      9 ft.*lbf

   2.

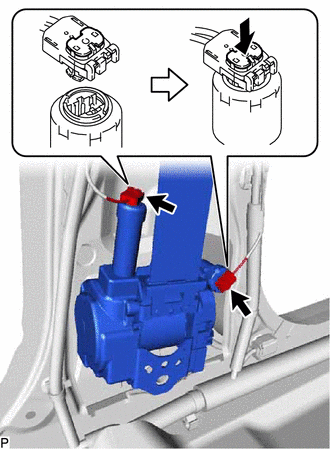

      Connect the pretensioner connector and selectable force limiter connector, and lock the 2 locking buttons as shown in the illustration.

      Note:

      Securely lock the locking button.

   3. Connect the shoulder anchor of the front seat outer belt assembly RH with the nut.

      42 N*m

      428 kgf*cm

      31 ft.*lbf

4. INSTALL CENTER PILLAR GARNISH LH

   Click here

5. INSTALL LOWER CENTER PILLAR GARNISH LH

   Click here

6. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

   1. Connect the floor anchor of the front seat outer belt assembly LH with the bolt.

      42 N*m

      428 kgf*cm

      31 ft.*lbf

   2. Check that the front seat outer belt assembly LH is not twisted.

7. INSTALL OUTER LAP BELT ANCHOR COVER

   1. Attach the 3 claws to install the outer lap belt anchor cover.

8. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

   Click here

9. INSTALL REAR DOOR SCUFF PLATE LH

   Click here

10. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

11. INSTALL FRONT DOOR SCUFF PLATE LH

    Click here

12. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick here

13. CHECK SRS WARNING LIGHT

    Click here

14. INSTALL BATTERY SERVICE COVER

    Click here

15. INSTALL DECK BOARD ASSEMBLY

    Click here
