REAR NO. 1 SEAT INNER BELT ASSEMBLY(for 60/40 Split Seat Type LH Side) COMPONENTS

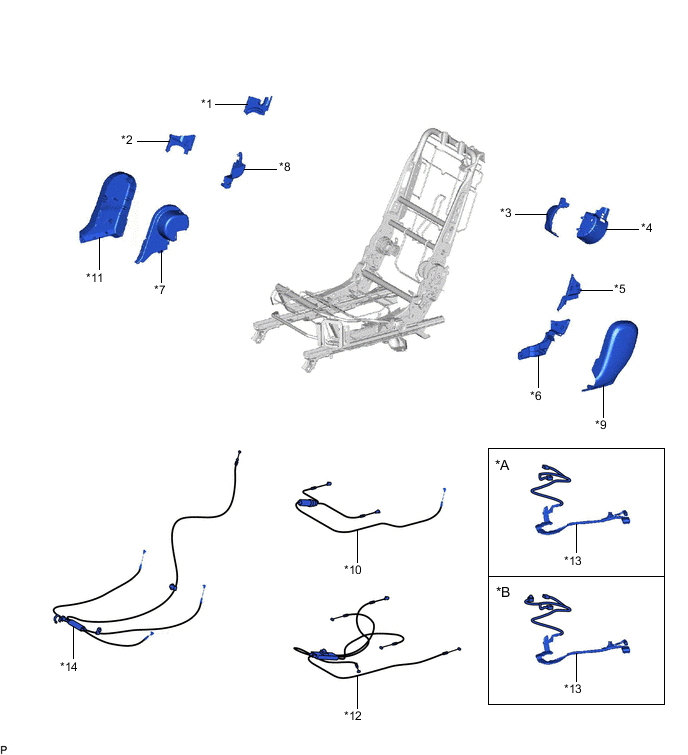

ILLUSTRATION

B005NF1C01
*A w/o Seat Belt Warning System *B w/ Seat Belt Warning System
*1 NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH *2 REAR NO. 1 SEAT RECLINING ADJUSTER INSIDE COVER
*3 REAR SEAT COVER CAP LH *4 REAR SEAT INNER BELT ASSEMBLY LH
*5 REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH *6 SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD
B007YU3 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -
