PARKING ASSIST MONITOR SYSTEM(w/o Parallel Parking Assist Function), Diagnostic DTC:C1625

DTC Code DTC Name
C1625 Open or Short in Steering Angle Sensor +B

DESCRIPTION

This DTC is stored if the rear television camera assembly receives a signal via CAN communication from the spiral cable with sensor sub-assembly that indicates a power supply problem.

DTC No. Detection Item DTC Detection Condition Trouble Area
C1625 Open or Short in Steering Angle Sensor +B Open or short in spiral cable with sensor sub-assembly power source
  • Harness or connector

  • Spiral cable with sensor sub-assembly

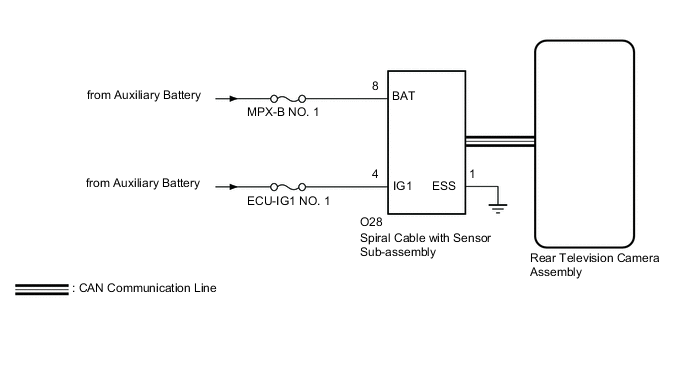

WIRING DIAGRAM

B004FDOE02

CAUTION / NOTICE / HINT

Note


  • Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the parking assist monitor system may be needed.

    Click here

  • When "!" is displayed on the multi-display assembly after the cable is disconnected from the negative (-) auxiliary battery terminal, correct the steering angle neutral point.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (GROUND)


    1. Disconnect the O28 spiral cable with sensor sub-assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      O28-1 (ESS) - Body ground Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    NG
    OK
  2. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY POWER SOURCE)


    1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      O28-5 (BAT) - O28-1 (ESS) Power switch off 11 to 14 V
      Result
      Proceed to
      OK
      NG

    NG
    OK
  3. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY POWER SOURCE)


    1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      O28-4 (IG1) - O28-1 (ESS) Power switch on (IG) 11 to 14 V
      Result
      Proceed to
      OK
      NG

    OK
    NG
