WINDSHIELD / WINDOW GLASS SYSTEM


  1. OUTLINE


    1. Windshield Deicer System (Models with Windshield Deicer System)


      1. The windshield deicer system uses a heater element in the windshield glass to help reduce the formation of ice where the front wipers rest.

    2. Heated Windshield Defroster System (Models with Heated Windshield Defroster System)


      1. The heated windshield defroster uses a heater element in the windshield glass to help to deice frozen windshield glass.

    3. Rear Window Defogger System


      1. The rear window defogger system uses a heater wire on the back door glass.

  2. SPECIFICATION

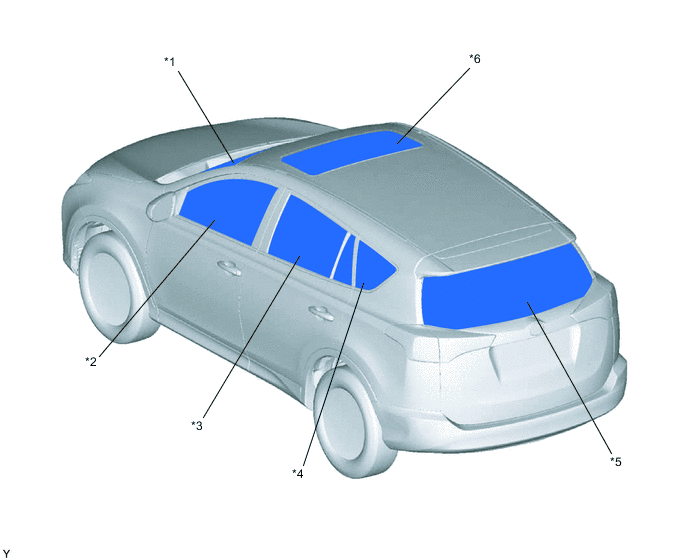

    A01QF6SN01
    No. Glass Portion Color Glass Type Visible Light Transmission Rate
    *1 Windshield Glass Green Laminated 70%*a or 75%*b
    *2 Front Door Glass Green Tempered 70%
    *3 Rear Door Glass Green Tempered 70%
    Dark Gray Tempered 20%
    *4 Rear Quarter Glass Green Tempered 70%
    Dark Gray Tempered 20%
    *5 Back Door Glass Green Tempered 70%
    Dark Gray Tempered 20%
    *6 Sliding Roof Glass*c Dark Gray Tempered 20%

    • *a: Models with high heat absorption glass

    • *b: Models without high heat absorption glass

    • *c: Models with sliding roof glass

  3. PRECAUTION


    1. Ignition Switch Expressions


      1. The type of ignition switch used on this model differs depending on the specifications of the vehicle. The expressions listed in the table below are used in this section.

        Expression

        Ignition Switch

        (Position)

        Engine Switch

        (Condition)
        Ignition Switch off LOCK Off (Lock)
        Ignition Switch ACC ACC On (ACC)
        Ignition Switch ON ON On (IG)
        Engine Start START On (Start)
