BRAKE CONTROL SYSTEM

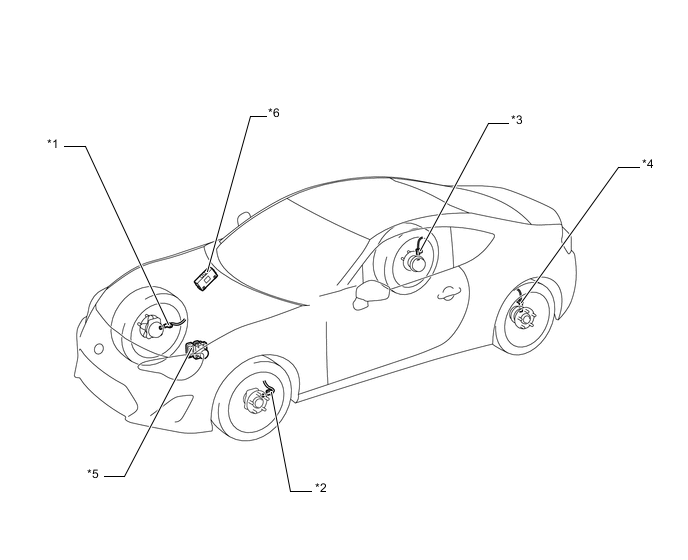

| *1 | Front Speed Sensor RH | *2 | Front Speed Sensor LH |
| *3 | Rear Speed Sensor RH | *4 | Rear Speed Sensor LH |
| *5 | Brake Actuator Assembly | *6 | ECM |
| *1 | ABS Warning Light | *2 | Brake System Warning Light |
| *3 | Slip Indicator Light | *4 | VSC OFF Indicator Light |
| *5 | TRC OFF Indicator Light | *6 | VSC SPORT Indicator Light |
| *7 | Combination Meter Assembly | *8 | VSC OFF Switch (Pattern Select Switch Assembly) |
| *9 | VSC SPORT Switch (Pattern Select Switch Assembly) | *10 | Stop Light Switch Assembly |
| *11 | Steering Sensor | *12 | DLC3 |
