SIDE AIRBAG SENSOR(for Front Door) COMPONENTS

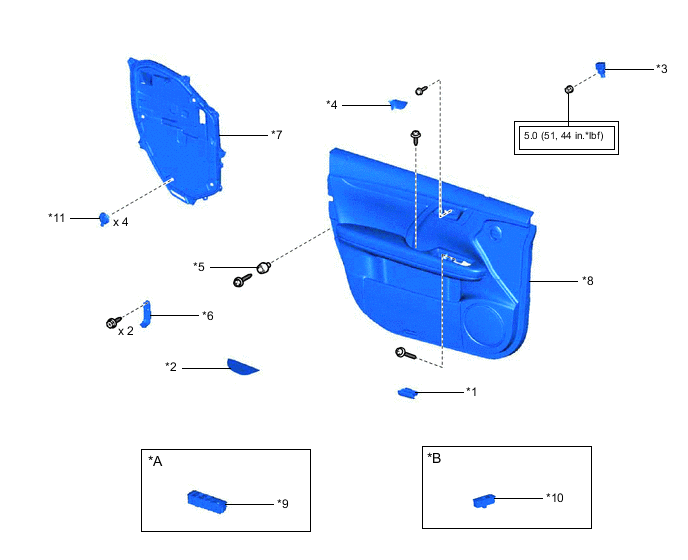

ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | COURTESY LIGHT ASSEMBLY | *2 | DOOR ARMREST COVER |
| *3 | DOOR SIDE AIRBAG SENSOR | *4 | FRONT DOOR INSIDE HANDLE BEZEL PLUG |
| *5 | FRONT DOOR NO. 1 STIFFENER CUSHION | *6 | FRONT DOOR NO. 1 TRIM BRACKET |
| *7 | FRONT DOOR SERVICE HOLE COVER | *8 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY |
| *9 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | *10 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
| *11 | FRONT DOOR WEATHERSTRIP CLIP | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
