VACUUM SENSOR REMOVAL

PROCEDURE


  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Click here

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY (w/ Air Conditioning System)

    Click here

  3. REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR


    1. A004K0I

      Disconnect the manifold absolute pressure sensor connector.

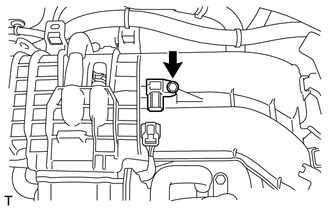

    2. A004JKN

      Remove the bolt and manifold absolute pressure sensor.

    3. A004INQ

      Remove the O-ring from the manifold absolute pressure sensor.
