PANORAMIC VIEW MONITOR SYSTEM ECU Power Source Circuit
| DTC Code | DTC Name |
|---|---|
| ECU Power Source Circuit |
DESCRIPTION
This circuit is the power source circuit to operate the parking assist ECU. The parking assist ECU controls the panoramic view monitor system.

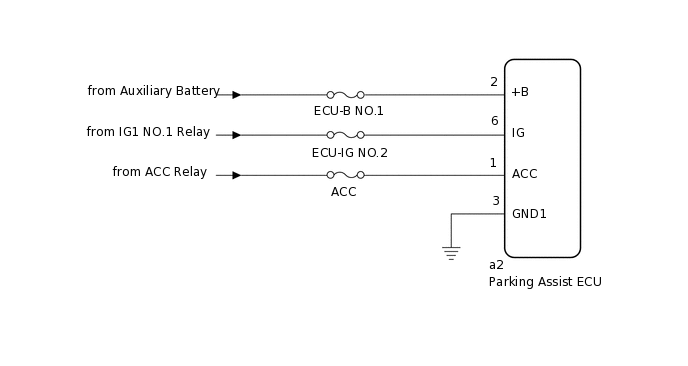

WIRING DIAGRAM
CAUTION / NOTICE / HINT
Inspect the fuse for circuits related to this system before performing the following inspection procedure.
The parking assist ECU is connected to other ECUs via CAN communication or AVC-LAN communication.
w/ Navigation System:
If the parking assist ECU does not operate due to a power source problem, a navigation system DTC may be stored due to an AVC-LAN communication interruption.
w/ Audio and Visual System (for Radio and Display Type):
If the parking assist ECU does not operate due to a power source problem, an audio and visual system DTC may be stored due to an AVC-LAN communication interruption.
If the parking assist ECU does not operate due to a power source problem, other system DTCs may be stored due to a CAN communication interruption.
PROCEDURE
CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - BATTERY AND BODY GROUND)
-

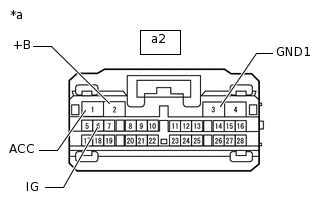

*a
Front view of wire harness connector
(to Parking Assist ECU)
Disconnect the parking assist ECU connector.
Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection
Condition
Specified Condition
a2-3 (GND1) - Body ground
Always
Below 1 Ω
Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection
Switch Condition
Specified Condition
a2-2 (+B) - a2-3 (GND1)
Power switch off
11 to 14 V
a2-1 (ACC) - a2-3 (GND1)
Power switch on (ACC)
11 to 14 V
a2-6 (IG) - a2-3 (GND1)
Power switch on (IG)
11 to 14 V
Result
Proceed to
OK
NG
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
-
