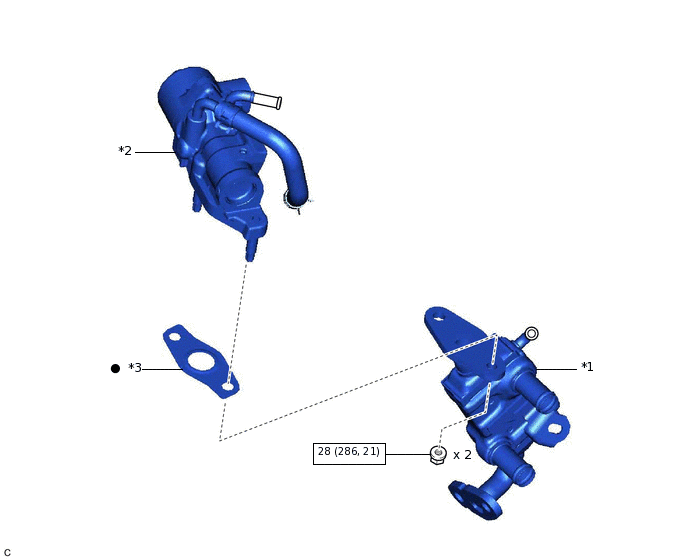

EGR COOLER COMPONENTS

*1	EGR COOLER ASSEMBLY	*2	EGR VALVE ASSEMBLY
*3	NO. 1 EGR COOLER GASKET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part

*1

EGR COOLER ASSEMBLY

*2

EGR VALVE ASSEMBLY

*3

NO. 1 EGR COOLER GASKET

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
