AIRBAG SYSTEM TERMINALS OF ECU

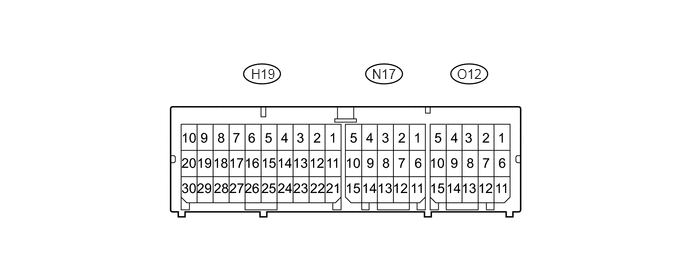

  1. CENTER AIRBAG SENSOR

    U122376E03

    Terminal No.

    Symbol

    Destination

    H19-3

    P-

    Instrument panel passenger airbag (Front passenger side squib)

    H19-4

    P+

    Instrument panel passenger airbag (Front passenger side squib)

    H19-5

    D+

    Steering pad (Driver side squib)

    H19-6

    D-

    Steering pad (Driver side squib)

    H19-9

    DK+

    Lower No. 1 instrument panel airbag (Driver side knee squib)

    H19-10

    DK-

    Lower No. 1 instrument panel airbag (Driver side knee squib)

    H19-13

    CANH

    CAN communication line

    H19-14

    MSW+

    Airbag cutoff switch cylinder

    H19-15

    MSW-

    Airbag cutoff switch cylinder

    H19-16

    SIL

    DLC3

    H19-17

    P-AB

    Passenger airbag ON/OFF indicator

    H19-18

    GSW

    Main body ECU

    H19-21

    IG2

    IGN fuse

    H19-22

    CANL

    CAN communication line

    H19-23

    PAON

    Passenger airbag ON/OFF indicator

    H19-25

    E1

    Ground

    H19-26

    E2

    Ground

    H19-27

    -SR

    Front airbag sensor RH

    H19-28

    -SL

    Front airbag sensor LH

    H19-29

    +SR

    Front airbag sensor RH

    H19-30

    +SL

    Front airbag sensor LH

    N17-1

    PL-

    Front seat outer belt LH (Front pretensioner squib LH)

    N17-2

    PL+

    Front seat outer belt LH (Front pretensioner squib LH)

    N17-6*

    ICL-

    Curtain shield airbag LH (Curtain shield squib LH)

    N17-7*

    ICL+

    Curtain shield airbag LH (Curtain shield squib LH)

    N17-8

    BBL+

    Side airbag sensor LH

    N17-9

    SFL+

    Front seat side airbag LH (Side squib LH)

    N17-10

    SFL-

    Front seat side airbag LH (Side squib LH)

    N17-15

    BBL-

    Side airbag sensor LH

    O12-4

    PR+

    Front seat outer belt RH (Front pretensioner squib RH)

    O12-5

    PR-

    Front seat outer belt RH (Front pretensioner squib RH)

    O12-6

    SFR-

    Front seat side airbag RH (Side squib RH)

    O12-7

    SFR+

    Front seat side airbag RH (Side squib RH)

    O12-8

    BBR+

    Side airbag sensor RH

    O12-9*

    ICR+

    Curtain shield airbag RH (Curtain shield squib RH)

    O12-10*

    ICR-

    Curtain shield airbag RH (Curtain shield squib RH)

    O12-11

    BBR-

    Side airbag sensor RH

    • *: w/ Curtain Shield Airbag
